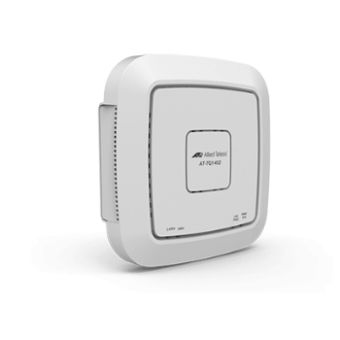

Allied Telesis At-Tq1402-00 1167 Mbit/S Power Over Ethernet
In Stock
|
Call For Price
(0808 189 1246)
Data transmission
Ethernet LAN data rates
10-100-1000 Mbit/s
Maximum data transfer rate
1167 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Flow control support
Yes
Auto Wireless Distribution System (WDS)
Yes
Firmware upgradeable
Yes
VLAN support
Yes
Networking standards
IEEE 802.11a- IEEE 802.11ac- IEEE 802.11b- IEEE 802.11g- IEEE 802.11i- IEEE 802.11k- IEEE 802.11r- IEEE 802.11v- IEEE 802.1Q- IEEE 802.1x- IEEE 802.3- IEEE 802.3ab- IEEE 802.3u- IEEE 802.3x
Modulation
16-QAM- 64-QAM- 256-QAM- BPSK- CCK- DBPSK- DQPSK- DSSS- OFDM- QPSK
Ethernet LAN data rates
10-100-1000 Mbit/s
Certification
FCC CE RCM IMDA KC MIC BSMI/NCC OFCA SIRIM
Maximum data transfer rate
1167 Mbit/s
Remote Authentication Dial-In User Service (RADIUS)
Yes
Wireless LAN features
Modulation
16-QAM- 64-QAM- 256-QAM- BPSK- CCK- DBPSK- DQPSK- DSSS- OFDM- QPSK
Network
Networking standards
IEEE 802.11a- IEEE 802.11ac- IEEE 802.11b- IEEE 802.11g- IEEE 802.11i- IEEE 802.11k- IEEE 802.11r- IEEE 802.11v- IEEE 802.1Q- IEEE 802.1x- IEEE 802.3- IEEE 802.3ab- IEEE 802.3u- IEEE 802.3x
Management features
VLAN support
Yes
Firmware upgradeable
Yes
Certificates
Certification
FCC CE RCM IMDA KC MIC BSMI/NCC OFCA SIRIM
Features
2.4 GHz
Yes
5 GHz
Yes
Flow control support
Yes
VLAN support
Yes
Networking standards
IEEE 802.11a- IEEE 802.11ac- IEEE 802.11b- IEEE 802.11g- IEEE 802.11i- IEEE 802.11k- IEEE 802.11r- IEEE 802.11v- IEEE 802.1Q- IEEE 802.1x- IEEE 802.3- IEEE 802.3ab- IEEE 802.3u- IEEE 802.3x
Modulation
16-QAM- 64-QAM- 256-QAM- BPSK- CCK- DBPSK- DQPSK- DSSS- OFDM- QPSK
Ethernet LAN data rates
10-100-1000 Mbit/s
Maximum data transfer rate
1167 Mbit/s
Security
Auto Wireless Distribution System (WDS)
Yes
Security algorithms
64-bit WEP- 128-bit WEP- AES- HTTPS- SNMP- TKIP- WPA- WPA2
MAC address filtering
Yes
Remote Authentication Dial-In User Service (RADIUS)
Yes
Service Set Identifier (SSID) features
Hidden SSID
Protocols
DHCP client
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Power
Power consumption (max)
12 W
Output voltage
12 V
Output current
2 A
Power consumption (typical)
7.4 W
Power over Ethernet (PoE)
Yes
AC input voltage
100 - 240 V
AC input frequency
47-63 Hz
Design
Placement
Wall
Product colour
White
Certification
FCC CE RCM IMDA KC MIC BSMI/NCC OFCA SIRIM
Antenna
Antenna type
Internal
Technical details
Firmware upgradeable
Yes
Harmonized System (HS) code
85176990
Operational conditions
Operating relative humidity (H-H)
0 - 90%
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-25 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Weight & dimensions
Width
163 mm
Depth
165 mm
Weight
430 g
Height
43 mm
Packaging data
Number of products included
1 pc(s)
Packaging content
Number of products included
1 pc(s)
