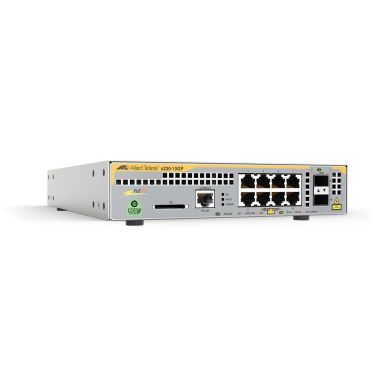

Allied Telesis AT-X230-10GP-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
In Stock
|
$1580.83
$1897.00 (Inc. VAT)
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
MIB support
Yes
Switch layer
L3
Network
IGMP snooping
Yes
Networking standards
IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex
Yes
Port mirroring
Yes
Link aggregation
Yes
Flow control support
Yes
10G support
No
Performance
Stackable
Yes
Internal memory
256 MB
Power
Power connector
DC-in jack
AC input voltage
90 - 260 V
AC input frequency
47/63 Hz
Power consumption (typical)
24 W
Technical details
Product colour
Grey
Stackable
Yes
Rack mounting
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
2
Power connector
DC-in jack
Data transmission
Throughput
6.5 Mpps
MAC address table
16000 entries
Switching capacity
12.8 Gbit/s
Security
Security algorithms
802.1x RADIUS
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP server, DHCP client
Multicast features
Multicast support
Yes
Certificates
Safety
UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1
Memory
Internal memory
256 MB
Design
Safety
UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1
Product colour
Grey
Stackable
Yes
LED indicators
Yes
Rack mounting
Yes
Indication
LED indicators
Yes
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-25 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
5 - 90%
Operating altitude
0 - 3048 m
Heat dissipation
81 BTU/h
Weight & dimensions
Width
340 mm
Depth
215 mm
Height
44 mm
Weight
2.4 kg
Allied Telesis AT-X230-10GP-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
