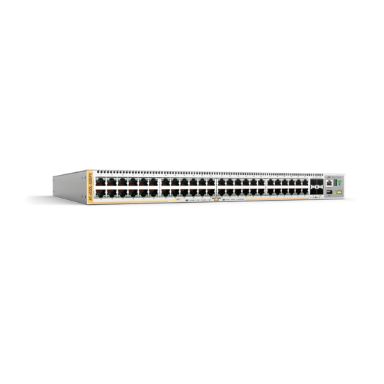

Allied Telesis AT-x530L-52GPX-50 Managed L3 Gigabit Ethernet (10/100/1000) Grey Power over Ethernet
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L3
Configuring Location Settings (CLI)
Yes
Ports & interfaces
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1v, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex
Yes
VLAN support
Yes
Port mirroring
Yes
Number of VLANs
4094
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Auto-negotiation
Yes
Virtual LAN features
Private VLAN, Tagged VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4094
Virtual LAN features
Private VLAN, Tagged VLAN
Data transmission
Number of VLANs
4094
Jumbo frames
10000
Packet buffer memory
3 MB
MAC address table
16000 entries
Switching capacity
176 Gbit/s
Jumbo frames support
Yes
Forwarding rate
130.9 Mpps
Performance
Packet buffer memory
3 MB
Stackable
Yes
Auto-negotiation
Yes
Physical stacking (units)
4
Noise level
42 dB
Memory type
DDR3-SDRAM
Internal memory
1024 MB
Flash memory
256 MB
Harmonized System (HS) code
85176990
Export Control Classification Number (ECCN)
5A992C
Technical details
Physical stacking (units)
4
Product colour
Grey
Stackable
Yes
Noise level
42 dB
Rack mounting
Yes
Optical fiber
Fiber ethernet cabling technology
100BASE-X, 1000BASE-X
Security
Loop protection
Yes
BPDU filtering/protection
Yes
Authentication
Guest VLAN, MAC-based authentication, Web-based authentication
Security algorithms
HTTPS, PEAP, SHA-2, SNMP, SSH-2, SSL/TLS, TTLS
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Password protection
Yes
Authentication type
IEEE 802.1x
DHCP features
DHCPv6 client, DHCPv6 relay, DHCPv6 server
Multicast features
Multicast support
Yes
Certificates
Electromagnetic compatibility
EN55032 A, FCC A, VCCI A, ICES-003 A
Certification
UL, cUL, RoHS UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1
Memory
Packet buffer memory
3 MB
Memory type
DDR3-SDRAM
Internal memory
1024 MB
Flash memory
256 MB
Design
Product colour
Grey
Stackable
Yes
Electromagnetic compatibility
EN55032 A, FCC A, VCCI A, ICES-003 A
Certification
UL, cUL, RoHS UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1
Rack mounting
Yes
Power
Power consumption (max)
950 W
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
48
Total Power over Ethernet (PoE) budget
740 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-25 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
5 - 90%
Operating altitude
0 - 3048 m
Heat dissipation
3242 BTU/h
Weight & dimensions
Width
441 mm
Depth
421 mm
Height
44 mm
Weight
6.7 kg
Packaging data
Package width
563 mm
Package depth
534 mm
Package height
128 mm
Package weight
8.9 kg
Manual
Yes
Packaging content
Manual
Yes
Allied Telesis AT-x530L-52GPX-50 Managed L3 Gigabit Ethernet (10/100/1000) Grey Power over Ethernet
