Power | |
---|---|
Output voltage regulation | +8- -21% |
Output power | 300 W |
Input operation voltage (min) | 159 V |
Input operation voltage (max) | 282 V |
Output operation voltage (min) | 220 V |
Output operation voltage (max) | 240 V |
Surge energy rating | 320 J |
Maximum current | 10 A |
Efficiency | 95% |
Output power capacity | 0.55 kVA |
Ports & interfaces | |
Cable length | 0.2 m |
AC outlets quantity | 6 AC outlet(s) |
AC outlet types | C13 coupler |
Power plug | C14 coupler |
USB 2.0 ports quantity | 1 |
Modem (RJ-11) ports | 1 |
Ethernet LAN (RJ-45) ports | 1 |
Performance | |
UPS topology | Line-Interactive |
Waveform | Sine |
Automatic Voltage Regulation (AVR) | Yes |
Number of input phases | 1 |
Response time | 4 ms |
LED indicators | Yes |
EMI/RFI noise filtering | Yes |
Surge protection | Yes |
Surge protection features | Telephone |
Power protection features | Over voltage- Under voltage |
Audible alarm(s) | Yes |
Features | |
Country of origin | China |
UPS topology | Line-Interactive |
Waveform | Sine |
Output voltage regulation | +8- -21% |
Automatic Voltage Regulation (AVR) | Yes |
Number of input phases | 1 |
Response time | 4 ms |
Output power | 300 W |
Input operation voltage (min) | 159 V |
Input operation voltage (max) | 282 V |
Output operation voltage (min) | 220 V |
Output operation voltage (max) | 240 V |
Surge energy rating | 320 J |
Maximum current | 10 A |
Efficiency | 95% |
EMI/RFI noise filtering | Yes |
Surge protection | Yes |
Surge protection features | Telephone |
Power protection features | Over voltage- Under voltage |
Audible alarm(s) | Yes |
Output power capacity | 0.55 kVA |
Input frequency | 50/60 Hz |
Battery | |
Typical backup time at half load | 5.1 min |
Hot-swap battery | Yes |
Cold start | Yes |
Design | |
Country of origin | China |
Rack capacity | 2U |
Form factor | Tower |
LED indicators | Yes |
Product colour | Black |
Certification | CE- GOST- SASO- FCC- EN62040 |
Cable length | 0.2 m |
Housing material | Acrylonitrile butadiene styrene (ABS) |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -15 - 50 °C |
Operating relative humidity (H-H) | 0 - 95% |
Technical details | |
Sustainability certificates | RoHS |
Weight & dimensions | |
Package width | 340.4 mm |
Package depth | 223.5 mm |
Package height | 116.8 mm |
Weight | 3.85 kg |
Width | 279.9 mm |
Package weight | 4.63 kg |
Height | 83.3 mm |
Depth | 150.1 mm |
Packaging data | |
Package width | 340.4 mm |
Package depth | 223.5 mm |
Package height | 116.8 mm |
Bundled software | PowerAlert UPS |
Package weight | 4.63 kg |
Logistics data | |
Products per master (outer) case | 4 pc(s) |
Master (outer) case width | 457.2 mm |
Master (outer) case length | 342.9 mm |
Master (outer) case height | 266.7 mm |
Master (outer) case gross weight | 18.7 kg |
Master (outer) case GTIN (EAN/UPC) | 10037332123470 |
Certificates | |
Certification | CE- GOST- SASO- FCC- EN62040 |
Other features | |
Interface | USB |
Nominal output voltage | 230 V |
Nominal input voltage | 230 V |
Mac compatibility | Yes |
Weight (imperial) | 4.72 kg (10.4 lbs) |
Non-operating relative humidity (non-condensing) | 0 - 95% |
Packaging content | |
Bundled software | PowerAlert UPS |

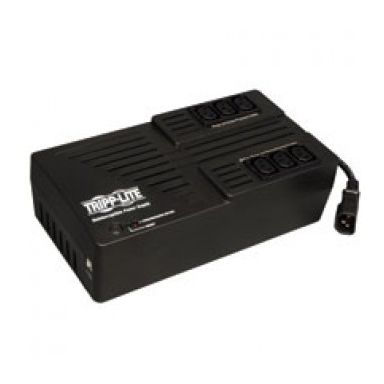

Tripp Lite AVR Series 230V 550VA 300W Ultra-Compact Line-Interactive UPS with USB port, C13 Outlets
