out of 5

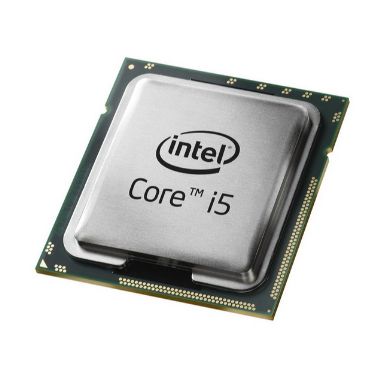

Intel Core i5-3230M processor 2.6 GHz 3 MB Smart Cache
In Stock
|
$149.21
$179.05 (Inc. VAT)
Processor
Processor generation
3rd gen Intel® Core⢠i5
Processor base frequency
2.6 GHz
Processor manufacturer
Intel
Cooler included
No
Processor codename
Ivy Bridge
Memory bandwidth supported by processor (max)
25.6 GB/s
Thermal Design Power (TDP)
35 W
Processor cache
3 MB
Processor ARK ID
72164
Processor model
i5-3230M
Processor threads
4
System bus rate
5 GT/s
Processor operating modes
64-bit
Processor boost frequency
3.2 GHz
CPU multiplier (bus/core ratio)
26
Bus type
DMI
Component for
Netbook/nettop
Processor lithography
22 nm
Processor family
Intel Core i5
Processor cores
2
Box
No
Processor socket
PGA988
Processor series
Intel Core i5-3200 Mobile series
Processor cache type
Smart Cache
Generation
3rd Generation
Memory
Maximum internal memory supported by processor
32 GB
Memory types supported by processor
DDR3-SDRAM-DDR3L-SDRAM-DDR3L-RS-SDRAM
Memory clock speeds supported by processor
1333-1600 MHz
Memory bandwidth supported by processor (max)
25.6 GB/s
Supported memory types
DDR3-SDRAM-DDR3L-SDRAM-DDR3L-RS-SDRAM
Memory channels
Dual-channel
ECC
No
Graphics
On-board graphics adapter outputs supported
Embedded DisplayPort (eDP)- DisplayPort- HDMI- Serial Digital Video Out (SDVO)- CRT
On-board graphics adapter ID
0x166
Number of displays supported (on-board graphics)
3
On-board graphics adapter model
Intel® HD Graphics 4000
On-board graphics adapter
Yes
On-board graphics adapter dynamic frequency (max)
1100 MHz
On-board graphics adapter base frequency
650 MHz
Power
Thermal Design Power (TDP)
35 W
Technical details
Cache memory
3 MB
Intel® Secure Key
Yes
Thermal Monitoring Technologies
Yes
Intel® Wireless Display (Intel® WiDi)
Yes
Intel® Turbo Boost Technology
2.0
Intel Trusted Execution Technology
No
Intel® Quick Sync Video Technology
Yes
Intel® My WiFi Technology (Intel® MWT)
Yes
Intel® InTru⢠3D Technology
Yes
Intel® Insiderâ¢
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel Flex Memory Access
Yes
Intel FDI Technology
Yes
Intel Fast Memory Access
Yes
Intel Dual Display Capable Technology
Yes
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Anti-Theft Technology (Intel® AT)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Idle States
Yes
Execute Disable Bit
Yes
Enhanced Intel SpeedStep Technology
Yes
Intel® Virtualization Technology (Intel® VT)
VT-d-VT-x
PCI Express slots version
3.0
PCI Express configurations
1x16-2x8-1x8-2x4
Supported instruction sets
AVX
Supported processor frequency (max)
3.2 GHz
L2 cache
3072 KB
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Enhanced Halt State
Yes
Intel Demand Based Switching
No
Graphics & IMC lithography
22 nm
Embedded options available
No
CPU configuration (max)
1
Bandwidth
5 MB/s
Graphics output
eDP/DP/HDMI/SDVO/CRT
Product type
Processor
Processor cache
3072 KB
Intel Virtualization Technology for Directed I/O (VT-d)
No
Intel 64
Yes
Thermal Design Power (TDP)
35 W
Supported memory types
DDR3-SDRAM-DDR3L-SDRAM-DDR3L-RS-SDRAM
Status
Discontinued
Product name
Intel Core i5-3230M (3M Cache- up to 3.20 GHz) rPGA
Processor series
Intel Core i5-3200 Mobile series
Market segment
Mobile
Launch date
Q1'13
Intel Virtualization Technology (VT-x)
Yes
Intel Secure Key Technology version
1.00
Intel Identity Protection Technology version
1.00
Graphics max dynamic frequency
1.10 GHz
Processor cache type
Smart Cache
Bus type units
GT/s
Bus bandwidth
5
Born on date
Q1'13
Maximum memory
32 GB
Processor brand name
Intel Core i5 Intel Core i5 Processor
Last change
63903513
Product family
3rd Generation Intel Core i5 Processors
Processor ID
0x166
Bus speed
5 GT/s
Features
On-board graphics adapter ID
0x166
Maximum number of PCI Express lanes
16
Thermal Design Power (TDP)
35 W
Processor package size
37.5mm x 37.5mm
Integrated 4G WiMAX
Yes
Processor ARK ID
72164
Thermal Monitoring Technologies
Yes
Idle States
Yes
Execute Disable Bit
Yes
PCI Express slots version
3.0
PCI Express configurations
1x16-2x8-1x8-2x4
Supported instruction sets
AVX
Graphics & IMC lithography
22 nm
Embedded options available
No
CPU configuration (max)
1
Bandwidth
5 MB/s
Market segment
Mobile
Images Type Map
Harmonized System (HS) code
8542310001
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G077159
PCI Express CEM revision
3.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)
No
Intel 64
Yes
Conflict-Free processor
Yes
Intel® Secure Key
Yes
Intel® Wireless Display (Intel® WiDi)
Yes
Intel® Turbo Boost Technology
2.0
Intel Trusted Execution Technology
No
Intel® Quick Sync Video Technology
Yes
Intel® My WiFi Technology (Intel® MWT)
Yes
Intel® InTru⢠3D Technology
Yes
Intel® Insiderâ¢
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel Flex Memory Access
Yes
Intel FDI Technology
Yes
Intel Fast Memory Access
Yes
Intel Dual Display Capable Technology
Yes
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Anti-Theft Technology (Intel® AT)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Enhanced Intel SpeedStep Technology
Yes
Intel® Virtualization Technology (Intel® VT)
VT-d-VT-x
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Enhanced Halt State
Yes
Intel Demand Based Switching
No
Intel Virtualization Technology (VT-x)
Yes
Intel Secure Key Technology version
1.00
Intel Identity Protection Technology version
1.00
Intel® vPro⢠Platform Eligibility
No
Intel® Turbo Boost Technology 2.0 frequency
3.2 GHz
Operational conditions
Tjunction
105 °C
Weight & dimensions
Processor package size
37.5mm x 37.5mm
Other features
Cache memory
3 MB
Intel® Virtualization Technology (Intel® VT)
VT-d-VT-x
Maximum internal memory
32768 MB
Maximum internal memory
32 GB
Supported processor frequency (max)
3.2 GHz
L2 cache
3072 KB
CPU configuration (max)
1
Graphics output
eDP/DP/HDMI/SDVO/CRT
Intel Core i5-3230M processor 2.6 GHz 3 MB Smart Cache
Write Your Own Review
