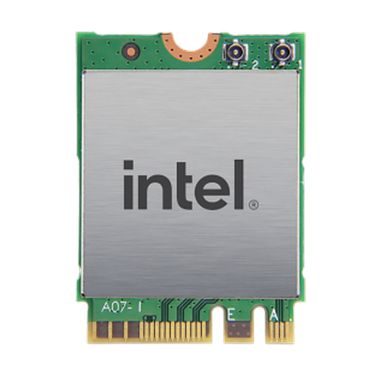

Intel AX200.NGWG networking card
In Stock
|
£25.20
£30.24 (Inc. VAT)
get it next day (UK Mainland Orders)
Ports & interfaces
Internal
Yes
Interface
WLAN
Host interface
PCI Express
Connectivity technology
Wireless
Bandwidth
Maximum data transfer rate
2400 Mbit/s
Wireless LAN features
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi standards
Wi-Fi 6 (802.11ax)
Wi-Fi
Yes
Antenna
Antenna type
2x2
Technical details
Interface type
Wi-Fi(PCIe), BT(USB)
Supported Under vPro
Yes
Harmonized System (HS) code
85176990
Export Control Classification Number (ECCN)
5A992CN3
Commodity Classification Automated Tracking System (CCATS)
G165483
Product type
Wireless
Processor family
Intel Wi-Fi 6 Products
Status
Launched
Product brief URL
https://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/wi-fi-6-ax200-module-brief.pdf
Launch date
Q2'19
Network
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi standards
Wi-Fi 6 (802.11ax)
Wi-Fi
Yes
Security algorithms
64-bit WEP, 128-bit AES, 128-bit WEP, 256-bit AES, AES-CCMP, AES-GCMP, EAP-AKA, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, TKIP, WPA2, WPA3, WPS
Bluetooth version
5
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w
Maximum data transfer rate
2400 Mbit/s
Bluetooth
Yes
MU-MIMO
Yes
Design
Internal
Yes
Antenna type
2x2
Component for
PC/Laptop
Package size
22 x 30 x 2.4 mm
Product series
Product codename
Cyclone Peak
Software
Windows operating systems supported
Windows 10 x64
Linux operating systems supported
Yes
Other operating systems supported
ChromeOS
System requirements
Windows operating systems supported
Windows 10 x64
Linux operating systems supported
Yes
Other operating systems supported
ChromeOS
Compatible operating systems
Windows 10, 64-bit*|Linux*
Operational conditions
Operating temperature (T-T)
Minimum operating temperature
Maximum operating temperature
Weight & dimensions
Width
22 mm
Depth
30 mm
Height
2.4 mm
Weight
2.83 g
Security
Security algorithms
64-bit WEP, 128-bit AES, 128-bit WEP, 256-bit AES, AES-CCMP, AES-GCMP, EAP-AKA, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, TKIP, WPA2, WPA3, WPS
Performance
Security algorithms
64-bit WEP, 128-bit AES, 128-bit WEP, 256-bit AES, AES-CCMP, AES-GCMP, EAP-AKA, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, TKIP, WPA2, WPA3, WPS
Windows operating systems supported
Windows 10 x64
Linux operating systems supported
Yes
Other operating systems supported
ChromeOS
Supported Under vPro
Yes
Other features
Bluetooth version
5
Compatible operating systems
Windows 10, 64-bit*|Linux*
Bluetooth
Yes
Product type
Wireless
Processor family
Intel Wi-Fi 6 Products
Interface type
Wi-Fi(PCIe), BT(USB)
Supported Under vPro
Yes
Status
Launched
Product brief URL
https://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/wi-fi-6-ax200-module-brief.pdf
Launch date
Q2'19
Product series
Product codename
Cyclone Peak
Harmonized System (HS) code
85176990
Export Control Classification Number (ECCN)
5A992CN3
Commodity Classification Automated Tracking System (CCATS)
G165483
Minimum operating temperature
Maximum operating temperature
Compliance
FIPS, FISMA
Antenna type
2x2
Logistics data
Harmonized System (HS) code
85176990
Intel AX200.NGWG networking card
| Length | 3 cm |
| Width | 2.2 cm |
| Height | 0.24 cm |
| Weight | 0.00 kgs |
