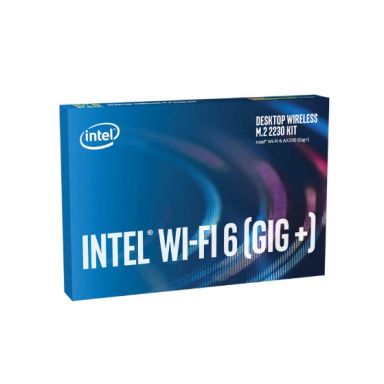

Intel AX200.NGWG.DTK network card Internal WLAN 2400 Mbit/s
In Stock
|
Call For Price
(0808 189 1246)
Ports & interfaces
Internal
Yes
Interface
WLAN
Host interface
M.2
Connectivity technology
Wireless
Bandwidth
Maximum data transfer rate
2400 Mbit/s
Wireless LAN features
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi standards
Wi-Fi 6 (802.11ax)
Wi-Fi
Yes
WLAN data transfer rates supported
2402 Mbit/s
Antenna
Antenna type
2x2
Technical details
Interface type
Wi-Fi(PCIe), BT(USB)
Supported Under vPro
No
Harmonized System (HS) code
85176990
Export Control Classification Number (ECCN)
5A992CN3
Commodity Classification Automated Tracking System (CCATS)
G165483
Product type
Wireless
Processor family
Intel Wi-Fi 6 Products
Status
Launched
Product brief URL
https://www.intel.com/content/www/us/en/products/docs/wireless/wi-fi-6-gig-desktop-kit-brochure.html
Launch date
Q1'20
Network
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi standards
Wi-Fi 6 (802.11ax)
Wi-Fi
Yes
Bluetooth version
5.2
Networking standards
IEEE 802.11ax
WLAN data transfer rates supported
2402 Mbit/s
Maximum data transfer rate
2400 Mbit/s
Bluetooth
Yes
MU-MIMO
Yes
Design
Internal
Yes
Form factor
M.2 2230
Antenna type
2x2
Component for
PC
Product series
Intel® Wireless Products
Product codename
Cyclone Peak
Software
Windows operating systems supported
Windows 10
Linux operating systems supported
Yes
System requirements
Windows operating systems supported
Windows 10
Linux operating systems supported
Yes
Compatible operating systems
Windows 10, 64-bit*|Linux*
Operational conditions
Operating temperature (T-T)
0 - 80 °C
Maximum operating temperature
80 °C
Performance
Windows operating systems supported
Windows 10
Linux operating systems supported
Yes
Supported Under vPro
No
Other features
Bluetooth version
5.2
Form factor
M.2 2230
Compatible operating systems
Windows 10, 64-bit*|Linux*
Bluetooth
Yes
Product type
Wireless
Processor family
Intel Wi-Fi 6 Products
Interface type
Wi-Fi(PCIe), BT(USB)
Supported Under vPro
No
Status
Launched
Product brief URL
https://www.intel.com/content/www/us/en/products/docs/wireless/wi-fi-6-gig-desktop-kit-brochure.html
Launch date
Q1'20
Product series
Intel® Wireless Products
Product codename
Cyclone Peak
Harmonized System (HS) code
85176990
Export Control Classification Number (ECCN)
5A992CN3
Commodity Classification Automated Tracking System (CCATS)
G165483
Maximum operating temperature
80 °C
Compliance
FIPS, FISMA
Antenna type
2x2
Logistics data
Harmonized System (HS) code
85176990
Intel AX200.NGWG.DTK network card Internal WLAN 2400 Mbit/s
