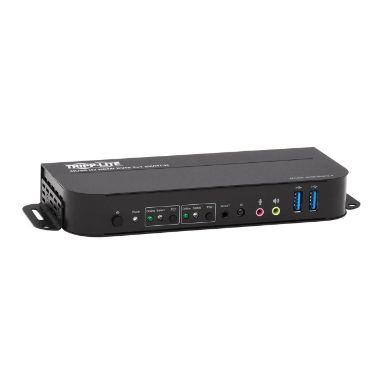

Eaton Tripp Lite B005-HUA2-K 2-Port HDMI/USB KVM Switch - 4K 60 Hz, HDR, HDCP 2.2, IR, USB Sharing, USB 3.
0 Reviews
| Add your review
In Stock
|
£113.04
£135.65 (Inc. VAT)
Ports & interfaces | |
---|---|
Cable length | 1.2 m |
Console ports | 3.5mm headphone- 3.5mm mic- HDMI- USB A |
HDCP | Yes |
Number of microphone inputs | 4 |
HDMI version | 2.0 |
Number of computers controlled | 2 |
Keyboard port type | USB |
Mouse port type | USB |
Video port type | HDMI |
Audio connections | Yes |
Headphone outputs | 4 |
HDMI ports quantity | 3 |
DC-in jack | Yes |
USB hub | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
Technical details | |
Product colour | Black |
Rack mounting | No |
Plug and Play | Yes |
Push button | Yes |
Number of users | 1 user(s) |
LED indicators | Yes |
Hot keys | Yes |
USB hub | Yes |
Sustainability certificates | RoHS |
Video | |
HD type | 4K Ultra HD |
Video bandwidth | 60 Hz |
Maximum resolution | 4096 x 2160 pixels |
Performance | |
HDCP | Yes |
Auto scan delay (min) | 5 s |
Auto scan delay (max) | 999 s |
Data transfer rate (max) | 5 Gbit/s |
HD type | 4K Ultra HD |
Video bandwidth | 60 Hz |
Plug and Play | Yes |
Maximum resolution | 4096 x 2160 pixels |
Number of users | 1 user(s) |
Audio channels | 7.1 |
Design | |
Country of origin | Vietnam |
Product colour | Black |
Cable length | 1.2 m |
Rack mounting | No |
Push button | Yes |
LED indicators | Yes |
Hot keys | Yes |
Certification | CE- FCC- REACH |
Housing material | Metal |
Display | |
Built-in display | No |
Power | |
Input current | 0.6 A |
Output current | 3 A |
Compatible power plug types | AU- EU- UK- US |
Output voltage | 5 V |
Power source | AC |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Power consumption (typical) | 11.75 W |
External power adapter | Yes |
Features | |
Country of origin | Vietnam |
Sustainability | |
Sustainability certificates | RoHS |
Operational conditions | |
Operating temperature (T-T) | 0 - 45 °C |
Storage temperature (T-T) | -10 - 80 °C |
Operating relative humidity (H-H) | 10 - 85% |
Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions | |
Width | 178.1 mm |
Depth | 74.9 mm |
Height | 25.9 mm |
Weight | 370 g |
Package width | 230.1 mm |
Package depth | 200.4 mm |
Package height | 65 mm |
Package weight | 550 g |
Packaging data | |
Package type | Box |
Package width | 230.1 mm |
Package depth | 200.4 mm |
Package height | 65 mm |
Package weight | 550 g |
Packaging content | |
Cables included | USB Type-A to USB Type-B |
Manual | Yes |
AC adapter included | Yes |
Package type | Box |
Certificates | |
Certification | CE- FCC- REACH |
Logistics data | |
Country of origin | Vietnam |
Master (outer) case width | 340.1 mm |
Master (outer) case length | 249.9 mm |
Master (outer) case height | 199.9 mm |
Master (outer) case gross weight | 3.5 kg |
Products per master (outer) case | 5 pc(s) |
Master (outer) case GTIN (EAN/UPC) | 10037332254891 |
Harmonized System (HS) code | 85176200 |
Other features | |
Push button | Yes |
Hot keys | Yes |
