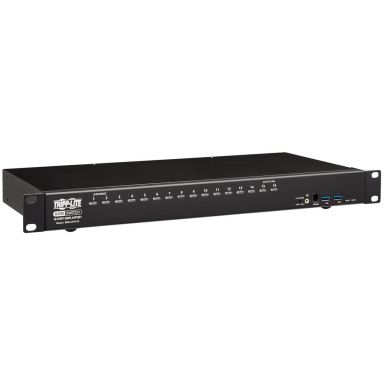

Tripp Lite B024-DPU16 16-Port DisplayPort/USB KVM Switch with Audio/Video and USB Peripheral Sharing, 4K 60 Hz, 1U Rack-Mount
In Stock
|
$1500.99
$1801.19 (Inc. VAT)
Ports & interfaces
Console USB ports quantity
2
Console ports
3.5mm headphone, DisplayPort, USB A
DisplayPorts quantity
17
DisplayPort version
1.2
Number of computers controlled
16
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
Audio connections
Yes
Headphone outputs
17
DC-in jack
Yes
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
16
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
HDCP
Yes
Performance
Daisy chain
Yes
HDCP
Yes
Firmware upgradeable
Yes
HD type
4K Ultra HD
Maximum resolution
4096 x 2160 pixels
Technical details
Product colour
Black
Rack mounting
Yes
Push button
Yes
On Screen Display (OSD)
Yes
LED indicators
Yes
Hot keys
Yes
USB hub
Yes
Sustainability compliance
Yes
Sustainability certificates
CE, REACH, RoHS, WEEE
Compliance certificates
CE, REACH, RoHS, WEEE
Design
Product colour
Black
Rack mounting
Yes
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Rack capacity
1U
Housing material
Metal
Country of origin
Taiwan
Display
Built-in display
No
On Screen Display (OSD)
Yes
Power
Input current
1.4 A
Output current
5 A
Output voltage
12 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
18.44 W
External power adapter
Yes
Input voltage
100 - 250 V
Video
HD type
4K Ultra HD
Maximum resolution
4096 x 2160 pixels
Features
Country of origin
Taiwan
Sustainability
Sustainability compliance
Yes
Sustainability certificates
CE, REACH, RoHS, WEEE
Compliance certificates
CE, REACH, RoHS, WEEE
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
214.3 mm
Depth
44 mm
Height
432.4 mm
Weight
3.11 kg
Package width
494.3 mm
Package depth
324.1 mm
Package height
133.1 mm
Package weight
5.31 kg
Packaging data
Package type
Box
Package width
494.3 mm
Package depth
324.1 mm
Package height
133.1 mm
Package weight
5.31 kg
Packaging content
Rubber feet
Yes
Rack mount kit
Yes
Cables included
AC, Audio (3.5mm), DisplayPort, USB Type-A to USB Type-B
Quick installation guide
Yes
AC adapter included
Yes
Package type
Box
Other features
Push button
Yes
Hot keys
Yes
Logistics data
Country of origin
Taiwan
Master (outer) case width
515 mm
Master (outer) case length
328 mm
Master (outer) case height
155 mm
Master (outer) case gross weight
5.11 kg
Products per master (outer) case
1 pc(s)
Master (outer) case GTIN (EAN/UPC)
10037332263718
Harmonized System (HS) code
8471.80.1000
Tripp Lite B024-DPU16 16-Port DisplayPort/USB KVM Switch with Audio/Video and USB Peripheral Sharing, 4K 60 Hz, 1U Rack-Mount
