0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O | |
---|---|
Number of M.2 (M) slots | 1 |
Front panel connector | Yes |
12V power connector | Yes |
USB 2.0 connectors | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
TPM connector | Yes |
Serial port via internal header | Yes |
Serial port headers | 1 |
S/PDIF out connector | Yes |
Parallel port via internal header | Yes |
Number of SATA III connectors | 6 |
Number of chassis fan connectors | 2 |
Front panel audio connector | Yes |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
RGB LED pin header | Yes |
Technical details | |
Motherboard chipset family | Intel |
Motherboard chipset | Intel B365 |
Serial port via internal header | Yes |
Serial port headers | 1 |
Parallel processing technology support | Not supported |
Parallel port via internal header | Yes |
Motherboard form factor | micro ATX |
Component for | PC |
Audio | |
Audio output channels | 7.1 channels |
Performance | |
Supported storage drive types | HDD & SSD |
Windows operating systems supported | Windows 10 |
Motherboard chipset family | Intel |
Motherboard chipset | Intel B365 |
RAID levels | 0-1-5-10 |
Audio output channels | 7.1 channels |
Motherboard form factor | micro ATX |
Component for | PC |
Processor | |
Processor manufacturer | Intel |
Processor socket | LGA 1151 (Socket H4) |
Memory | |
Number of memory slots | 4 |
Memory slots type | DIMM |
Supported memory types | DDR4-SDRAM |
Memory channels | Dual-channel |
ECC | No |
Non-ECC | Yes |
Supported memory clock speeds | 2666-2400-2133 MHz |
Supported memory module capacities | 4GB- 8GB- 16GB |
Maximum internal memory | 64 GB |
Unbuffered memory | Yes |
Storage controllers | |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | PCI Express 3.0-SATA III |
RAID levels | 0-1-5-10 |
Graphics | |
Parallel processing technology support | Not supported |
Rear panel I/O ports | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 2.0 ports quantity | 2 |
VGA (D-Sub) ports quantity | 1 |
PS/2 ports quantity | 1 |
Microphone in | Yes |
Headphone outputs | 1 |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
DVI-D ports quantity | 1 |
Network | |
Ethernet LAN | Yes |
Wi-Fi | No |
Ethernet interface type | Gigabit Ethernet |
Features | |
Power source type | ATX |
Windows operating systems supported | Windows 10 |
Motherboard chipset family | Intel |
Motherboard chipset | Intel B365 |
Audio output channels | 7.1 channels |
Motherboard form factor | micro ATX |
Component for | PC |
Audio chip | Realtek ALC887 |
Expansion slots | |
Number of M.2 (M) slots | 1 |
PCI Express x4 slots | 1 |
PCI Express x16 slots | 1 |
PCI Express x1 slots | 1 |
BIOS | |
BIOS type | UEFI AMI |
Clear CMOS jumper | Yes |
BIOS memory size | 128 Mbit |
ACPI version | 5 |
System Management BIOS (SMBIOS) version | 2.7 |
Desktop Management Interface (DMI) version | 2.7 |
DualBIOS | Yes |
Power | |
Power source type | ATX |
Software | |
Windows operating systems supported | Windows 10 |
Weight & dimensions | |
Width | 226 mm |
Depth | 205 mm |

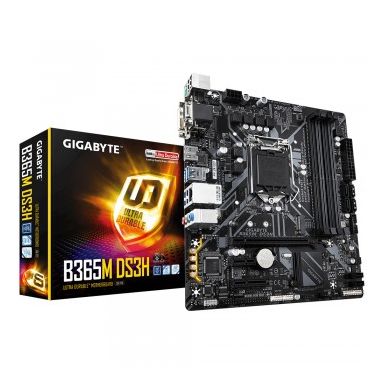

Gigabyte B365M DS3H motherboard LGA 1151 (Socket H4) Micro ATX Intel B365
