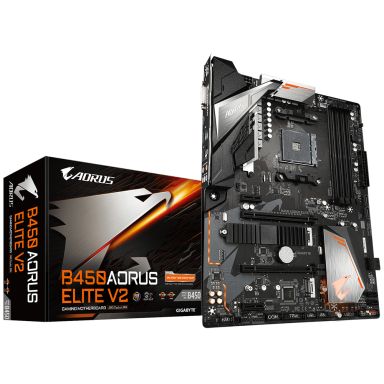

Gigabyte B450 AORUS Elite V2 Motherboard - Supports AMD Series 5000 CPUs, up to 3600MHz DDR4 (OC), 2xPCIe 3.0 x4 M.2, WIFI, GbE LAN, USB 3.1 Gen 1
In Stock
|
$82.74
$99.29 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
2
Total number of SATA connectors
6
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Serial port headers
1
S/PDIF out connector
Yes
Number of SATA III connectors
6
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD B450
Supported processor sockets
Socket AM4
Serial port headers
1
Parallel processing technology support
Not supported
Motherboard form factor
ATX
Component for
PC
Total number of SATA connectors
6
Maximum internal memory supported by processor
128 GB
Warranty period
3 year(s)
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
6
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B450
RAID levels
0, 1, 10
Supported processor sockets
Socket AM4
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
AMD
Maximum internal memory supported by processor
128 GB
Compatible processor series
AMD Ryzen 3, 2nd Generation AMD Ryzen 3, 3rd Generation AMD Ryzen 3, AMD Ryzen 5, 2nd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 5, AMD Ryzen 7, 2nd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9
Supported processor sockets
Socket AM4
Processor socket
Socket AM4
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133,2400,2667,2933,3200,3466,3600 MHz
Maximum internal memory
128 GB
Supported memory clock speed (max)
3600 MHz
Storage controllers
Number of HDDs supported
6
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 10
Number of storage drives supported
8
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
DirectX version
12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
4
PS/2 ports quantity
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Features
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B450
Supported processor sockets
Socket AM4
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC892
Harmonized System (HS) code
84733020
Expansion slots
Number of M.2 (M) slots
2
PCI Express x1 (Gen 2.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
BIOS
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
128 Mbit
ACPI version
5.0
Clear CMOS button
Yes
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
DirectX version
12.0
Packaging data
Package width
365 mm
Package depth
575 mm
Package height
375 mm
Package weight
1.39 kg
Software
Windows operating systems supported
Windows 10 x64
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Battery type
CR2032
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
Harmonized System (HS) code
84733020
Weight & dimensions
Height
35 mm
Package width
365 mm
Package depth
575 mm
Package height
375 mm
Package weight
1.39 kg
Packaging content
Batteries included
Yes
Other features
Height
35 mm
Package width
365 mm
Package depth
575 mm
Package height
375 mm
Package weight
1.39 kg
Gigabyte B450 AORUS Elite V2 Motherboard - Supports AMD Series 5000 CPUs, up to 3600MHz DDR4 (OC), 2xPCIe 3.0 x4 M.2, WIFI, GbE LAN, USB 3.1 Gen 1
