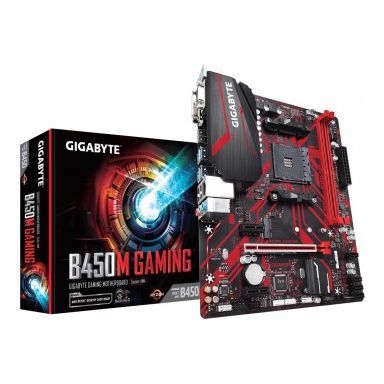

Gigabyte B450M GAMING motherboard Socket AM4 Micro ATX AMD B450
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
1
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Serial port headers
1
S/PDIF out connector
Yes
Number of SATA III connectors
4
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD B450
Serial port headers
1
PC health monitoring
Fan- Temperature- Voltage
On-board graphics adapter
Yes
Motherboard form factor
micro ATX
Component for
mini PC
Audio
Audio output channels
7.1 channels
Performance
Windows operating systems supported
Windows 10 Education x64-Windows 10 Enterprise x64-Windows 10 Home x64-Windows 10 Pro x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B450
RAID levels
0-1-10
PC health monitoring
Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
mini PC
Processor
Processor manufacturer
AMD
Compatible processor series
AMD Athlon- AMD Ryzen 3- 2nd Generation AMD Ryzen⢠3- AMD Ryzen 3 3rd Gen- AMD Ryzen 5- 2nd Generation AMD Ryzen⢠5- 3rd Generation AMD Ryzen 5- AMD Ryzen 7- 2nd Generation AMD Ryzen⢠7- 3rd Generation AMD Ryzen 7- 3rd Generation AMD Ryzen 9
Processor socket
Socket AM4
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2667-2933 MHz
Maximum internal memory
32 GB
Unbuffered memory
Yes
Storage controllers
RAID levels
0-1-10
Graphics
On-board graphics adapter
Yes
Maximum resolution
4096 x 2160 pixels
Discrete graphics support
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
S/PDIF out port
Yes
PS/2 ports quantity
1
Headphone outputs
3
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
1
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Features
Windows operating systems supported
Windows 10 Education x64-Windows 10 Enterprise x64-Windows 10 Home x64-Windows 10 Pro x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B450
PC health monitoring
Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
mini PC
Audio chip
Realtek ALC887
Expansion slots
Number of M.2 (M) slots
1
PCI Express x1 (Gen 2.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
128 Mbit
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
Plug and Play
Yes
Desktop Management Interface (DMI) version
2.7
Video
Maximum resolution
4096 x 2160 pixels
Discrete graphics support
Yes
Software
Windows operating systems supported
Windows 10 Education x64-Windows 10 Enterprise x64-Windows 10 Home x64-Windows 10 Pro x64
Weight & dimensions
Width
244 mm
Depth
205 mm
Gigabyte B450M GAMING motherboard Socket AM4 Micro ATX AMD B450
