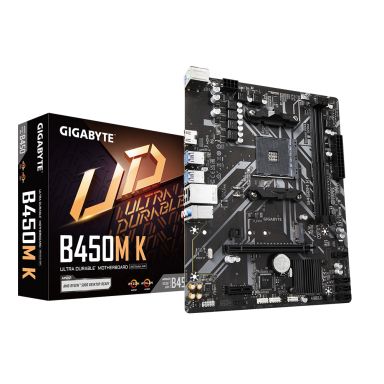

Gigabyte B450M K Motherboard - Supports AMD Series 5000 CPUs, up to 3600MHz DDR4 (OC), 1xPCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
1
Front panel connector
Yes
Audio connector
Yes
12V power connector
Yes
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
S/PDIF out connector
Yes
Number of SATA III connectors
4
Number of chassis fan connectors
1
Front panel audio connector
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD B450
Supported processor sockets
Socket AM4
PC health monitoring
Fan, Temperature, Voltage
Parallel processing technology support
Not supported
HDMI version
2.0
Motherboard form factor
micro ATX
Component for
PC
Warranty period
3 year(s)
Audio
Audio output channels
7.1 channels
Performance
Motherboard chipset family
AMD
Motherboard chipset
AMD B450
RAID levels
0, 1, 10
Supported processor sockets
Socket AM4
PC health monitoring
Fan, Temperature, Voltage
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Expansion card interfaces
Audio connector
Yes
Processor
Processor manufacturer
AMD
Compatible processor series
AMD Athlon, AMD Ryzen 3, 2nd Generation AMD Ryzen 3, 3rd Generation AMD Ryzen 3, AMD Ryzen 5, 2nd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 5, AMD Ryzen 7, 2nd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9
Supported processor sockets
Socket AM4
Maximum number of SMP processors
1
Processor socket
Socket AM4
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133,2400,2667,2933,3466,3600 MHz
Maximum internal memory
64 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
3600 MHz
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
0, 1, 10
Graphics
Maximum graphics card memory
16000 MB
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
DirectX version
12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
PS/2 ports quantity
2
HDMI version
2.0
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset family
AMD
Motherboard chipset
AMD B450
Supported processor sockets
Socket AM4
PC health monitoring
Fan, Temperature, Voltage
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Product colour
Brown
Expansion slots
Number of M.2 (M) slots
1
PCI Express x1 (Gen 2.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
BIOS
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
128 Mbit
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
Maximum graphics card memory
16000 MB
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
DirectX version
12.0
Packaging data
Package width
265 mm
Package depth
235 mm
Package height
52 mm
Package weight
754 g
Software
Drivers included
Yes
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Battery type
CR2032
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
Weight & dimensions
Height
35 mm
Package width
265 mm
Package depth
235 mm
Package height
52 mm
Package weight
754 g
Width
233 mm
Depth
198 mm
Packaging content
Drivers included
Yes
Cables included
SATA
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Batteries included
Yes
Other features
Height
35 mm
Package width
265 mm
Package depth
235 mm
Package height
52 mm
Package weight
754 g
Gigabyte B450M K Motherboard - Supports AMD Series 5000 CPUs, up to 3600MHz DDR4 (OC), 1xPCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
