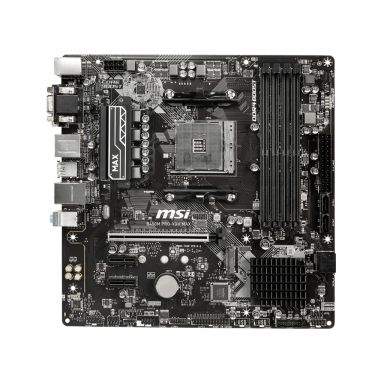

MSI B450M PRO-VDH Max AMD B450 Socket AM4 micro ATX
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
1
Supported storage drive interfaces
SATA III
USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
Serial port headers
1
Parallel connector
Yes
Number of SATA III connectors
4
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD B450
Supported processor sockets
Socket AM4
Serial port headers
1
Parallel processing technology support
Not supported
Motherboard form factor
micro ATX
Component for
PC
Number of mounting holes
8
Audio
Audio output channels
7.1 channels
Performance
Windows operating systems supported
Windows 10 x64, Windows 7 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B450
RAID levels
0, 1, 10
Supported processor sockets
Socket AM4
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
AMD
Compatible processor series
AMD Athlon, AMD Ryzen 3, 2nd Generation AMD Ryzen 3, 3rd Generation AMD Ryzen 3, AMD Ryzen 5, 2nd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 5, AMD Ryzen 7, 2nd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9
Supported processor sockets
Socket AM4
Maximum number of SMP processors
1
Processor socket
Socket AM4
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3733,3866 MHz
Maximum internal memory
64 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
0, 1, 10
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
DirectX version
12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Realtek 8111H
Ethernet interface type
Gigabit Ethernet
Features
Number of mounting holes
8
Windows operating systems supported
Windows 10 x64, Windows 7 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B450
Supported processor sockets
Socket AM4
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC892
Harmonized System (HS) code
84733020
Product colour
Black
Expansion slots
Number of M.2 (M) slots
1
PCI Express x16 slots
1
PCI Express x1 slots
2
Video
DirectX version
12.0
Software
Windows operating systems supported
Windows 10 x64, Windows 7 x64
Logistics data
Harmonized System (HS) code
84733020
Weight & dimensions
Width
244 mm
Depth
244 mm
MSI B450M PRO-VDH Max AMD B450 Socket AM4 micro ATX
