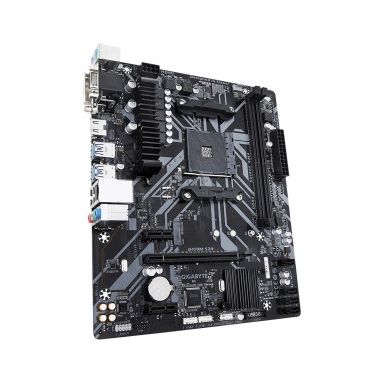

Gigabyte B450M S2H (rev. 1.0) motherboard Socket AM4 Micro ATX AMD B450
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD B450
Motherboard form factor
micro ATX
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Intel Extreme Memory Profile (XMP)
Yes
Windows operating systems supported
Yes
Motherboard chipset family
AMD
Motherboard chipset
AMD B450
RAID levels
0-1-10
Certification
CE- FCC
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Processor
Processor manufacturer
AMD
Compatible processor series
AMD Athlon- AMD Ryzen 3- 2nd Generation AMD Ryzen⢠3- AMD Ryzen 3 3rd Gen- AMD Ryzen 5- 2nd Generation AMD Ryzen⢠5- 3rd Generation AMD Ryzen 5- AMD Ryzen 7- 2nd Generation AMD Ryzen⢠7- 3rd Generation AMD Ryzen 7- 3rd Generation AMD Ryzen 9
Processor socket
Socket AM4
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2667-2933-3200 MHz
Maximum internal memory
32 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2-SATA III
RAID levels
0-1-10
Graphics
Maximum graphics adapter memory
2000 MB
Maximum resolution
4096 x 2160 pixels
Internal I/O
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2-SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
S/PDIF out connector
Yes
Number of SATA III connectors
4
Front panel audio connector
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
2
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
1
Network
Ethernet LAN
Yes
Ethernet interface type
Fast Ethernet- Gigabit Ethernet
Features
Windows operating systems supported
Yes
Motherboard chipset family
AMD
Motherboard chipset
AMD B450
Certification
CE- FCC
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Audio chip
Realtek ALC887
Expansion slots
PCI Express x16 slots
1
PCI Express x1 slots
2
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
16 Mbit
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
Plug and Play
Yes
Desktop Management Interface (DMI) version
2.7
Processor special features
Intel Extreme Memory Profile (XMP)
Yes
Video
Maximum graphics adapter memory
2000 MB
Maximum resolution
4096 x 2160 pixels
Certificates
Certification
CE- FCC
Software
Windows operating systems supported
Yes
Bundled software
Norton® Internet Security (OEM version) Realtek® 8118 Gaming LAN Bandwidth Control Utility
Weight & dimensions
Width
244 mm
Depth
205 mm
Packaging content
Bundled software
Norton® Internet Security (OEM version) Realtek® 8118 Gaming LAN Bandwidth Control Utility
Gigabyte B450M S2H (rev. 1.0) motherboard Socket AM4 Micro ATX AMD B450
