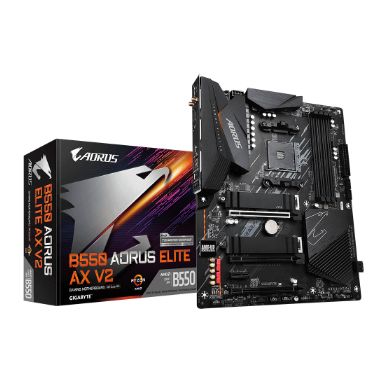

Gigabyte B550 AORUS ELITE AX V2 motherboard AMD B550 Socket AM4 ATX
In Stock
|
$139.32
$167.18 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
2
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2-SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Number of SATA III connectors
4
Number of chassis fan connectors
3
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
PC health monitoring
CPU- Fan- Temperature- Voltage
Parallel processing technology support
Not supported
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
RAID levels
0-1-10
PC health monitoring
CPU- Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
AMD
Compatible processor series
AMD Ryzen 3 3rd Gen- 3rd Generation AMD Ryzen 5- 3rd Generation AMD Ryzen 7- 3rd Generation AMD Ryzen 9
Processor socket
Socket AM4
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2667-2933-3200-3333-3600-4000-4400-4600-4733 MHz
Supported memory module capacities
8GB- 16GB- 32GB
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2-SATA III
RAID levels
0-1-10
Graphics
Parallel processing technology support
Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 2.0 ports quantity
2
WiFi-AP antenna jack
2
S/PDIF out port
Yes
Microphone in
Yes
Headphone outputs
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a-802.11b-802.11g-Wi-Fi 4 (802.11n)-Wi-Fi 5 (802.11ac)-Wi-Fi 6 (802.11ax)
Ethernet interface type
2.5 Gigabit Ethernet- Fast Ethernet- Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.0
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
WLAN controller model
Intel Wi-Fi 6 AX200
Features
Power source type
ATX
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
PC health monitoring
CPU- Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC1200
Supported processor sockets (cooler)
Socket AM4
Expansion slots
Number of M.2 (M) slots
2
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 slots
2
PCI Express x16 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Power
Power source type
ATX
Software
Windows operating systems supported
Windows 10 x64
Weight & dimensions
Width
305 mm
Depth
244 mm
Gigabyte B550 AORUS ELITE AX V2 motherboard AMD B550 Socket AM4 ATX
