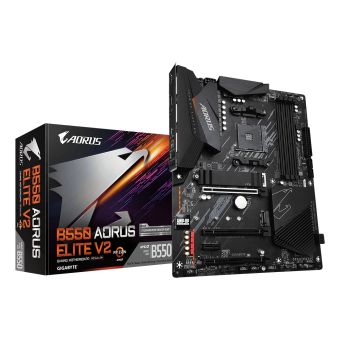

Gigabyte B550 AORUS ELITE V2 motherboard AMD B550 Socket AM4 ATX
In Stock
|
£119.99
£143.99 (Inc. VAT)
get it next day (UK Mainland Orders)
Gigabyte B550 AORUS ELITE V2 motherboard AMD B550 Socket AM4 ATX
Write Your Own Review
Internal I/O
Number of M.2 (M) slots
2
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2- SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Number of SATA III connectors
4
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
Parallel processing technology support
Not supported
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
RAID levels
0- 1- 10
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
AMD
Compatible processor series
3rd Generation AMD Ryzen⢠3- 3rd Generation AMD Ryzen 5- 3rd Generation AMD Ryzen⢠7- 3rd Generation AMD Ryzen⢠9
Processor socket
Socket AM4
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Supported memory clock speeds
2133-2400-2667-2933-3200 MHz
Maximum internal memory
128 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2- SATA III
RAID levels
0- 1- 10
Graphics
Maximum graphics card memory
16 MB
Parallel processing technology support
Not supported
Graphics card family
AMD
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 2.0 ports quantity
2
S/PDIF out port
Yes
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Realtek RTL8125
Ethernet interface type
2.5 Gigabit Ethernet- Gigabit Ethernet
Features
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC1200
Harmonized System (HS) code
84733020
Expansion slots
Number of M.2 (M) slots
2
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 slots
2
PCI Express x16 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
Maximum graphics card memory
16 MB
Graphics card family
AMD
Software
Windows operating systems supported
Windows 10 x64
Logistics data
Harmonized System (HS) code
84733020
Weight & dimensions
Height
272 mm
Weight
1.12 kg
Width
305 mm
Depth
244 mm
Other features
Height
272 mm
Weight
1.12 kg
| Length | 24.40 cm |
| Width | 30.50 cm |
| Height | 27.20 cm |
| Weight | 1.12 kgs |
