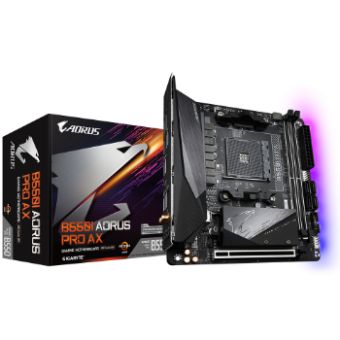

Gigabyte B550I AORUS PRO AX Socket AM4 mini ITX AMD B550
In Stock
|
$165.43
$198.52 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
2
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2- PCI Express 3.0- SATA
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
Number of chassis fan connectors
2
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Number of displays supported
3
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
PC health monitoring
Fan- Temperature- Voltage
HDMI version
2.1
Motherboard form factor
mini ITX
Component for
Nettop
Audio
Audio output channels
7.1 channels
Performance
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
RAID levels
0- 1- 10
PC health monitoring
Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
mini ITX
Component for
Nettop
Processor
Processor manufacturer
AMD
Compatible processor series
3rd Generation AMD Ryzen⢠3- 3rd Generation AMD Ryzen 5- 3rd Generation AMD Ryzen⢠7- 3rd Generation AMD Ryzen⢠9
Maximum number of SMP processors
1
Processor socket
Socket AM4
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2667-2933-3200-3333-3600-4000-4400-4600-5000 MHz
Maximum internal memory
64 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive interfaces
M.2- PCI Express 3.0- SATA
RAID levels
0- 1- 10
Graphics
Number of displays supported
3
Maximum graphics card memory
16000 MB
Maximum resolution
5120 x 2880 pixels
HDCP
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.4
HDMI version
2.1
HDMI ports quantity
2
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a- 802.11b- 802.11g- Wi-Fi 4 (802.11n)- Wi-Fi 5 (802.11ac)- Wi-Fi 6 (802.11ax)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.0
Features
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
PC health monitoring
Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
mini ITX
Component for
Nettop
Audio chip
Realtek ALC1220-VB
Harmonized System (HS) code
84733020
Expansion slots
Number of M.2 (M) slots
2
PCI Express x16 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
Maximum graphics card memory
16000 MB
Maximum resolution
5120 x 2880 pixels
HDCP
Yes
Software
Windows operating systems supported
Windows 10 x64
Bundled software
Norton Internet Security (OEM) XSplit Gamecaster + Broadcaster Realtek 8125 Gaming LAN Bandwidth Control Utility
Weight & dimensions
Height
78 mm
Weight
790 g
Width
170 mm
Depth
170 mm
Packaging content
Bundled software
Norton Internet Security (OEM) XSplit Gamecaster + Broadcaster Realtek 8125 Gaming LAN Bandwidth Control Utility
Other features
Height
78 mm
Weight
790 g
Gigabyte B550I AORUS PRO AX Socket AM4 mini ITX AMD B550
