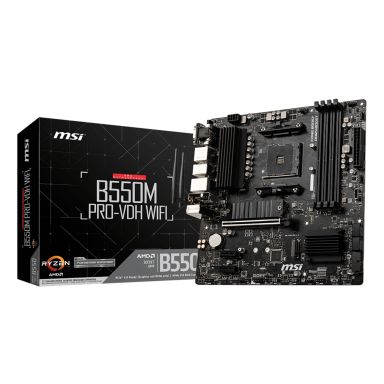

MSI B550M PRO-VDH WIFI motherboard AMD B550 Socket AM4 micro ATX
In Stock
|
$114.27
$137.12 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
2
12V power connector
Yes
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Serial port headers
1
Number of SATA III connectors
4
Number of chassis fan connectors
3
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
Serial port headers
1
Parallel processing technology support
Not supported
Motherboard form factor
micro ATX
Component for
PC
Number of mounting holes
8
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
RAID levels
0-1-10
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
AMD
Compatible processor series
AMD Ryzen 3 3rd Gen- 3rd Generation AMD Ryzen 5- 3rd Generation AMD Ryzen 7- 3rd Generation AMD Ryzen 9
Maximum number of SMP processors
1
Processor socket
Socket AM4
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
1866-2133-2400-2667-2800-2933-3000-3066-3200-3466-3600-3733-3866-4000-4133-4266-4400 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
SATA III
RAID levels
0-1-10
Graphics
Maximum graphics adapter memory
16000 MB
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2160 pixels
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
WiFi-AP antenna jack
2
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a-802.11b-802.11g-Wi-Fi 4 (802.11n)-Wi-Fi 5 (802.11ac)
LAN controller
Realtek 8111HN
Ethernet interface type
Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
4.2
Features
Number of mounting holes
8
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC892
Expansion slots
Number of M.2 (M) slots
2
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
BIOS
Clear CMOS jumper
Yes
Video
Maximum graphics adapter memory
16000 MB
Maximum resolution
4096 x 2160 pixels
Software
Drivers included
Yes
Weight & dimensions
Width
244 mm
Depth
244 mm
Packaging content
Drivers included
Yes
Cables included
SATA
MSI B550M PRO-VDH WIFI motherboard AMD B550 Socket AM4 micro ATX
Write Your Own Review
