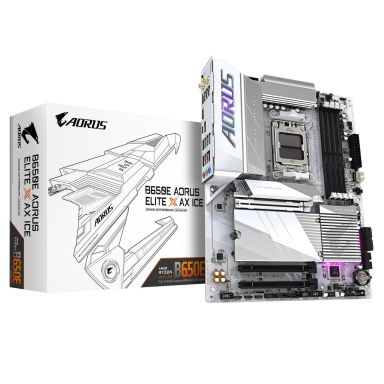

Gigabyte B650E AORUS ELITE X AX ICE Motherboard - Supports AMD Ryzen 8000 CPUs, 12+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 M2 + 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
3
Thunderbolt headers
2
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
Number of chassis fan connectors
4
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
USB 3.2 Gen 2x2 connectors
1
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD B650
Supported processor sockets
Socket AM5
PC health monitoring
Fan, Temperature, Voltage
HDMI version
2.1
Motherboard form factor
ATX
Component for
PC
Maximum internal memory supported by processor
192 GB
Warranty period
3 year(s)
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
3
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B650
RAID levels
0, 1, 5, 10
Supported processor sockets
Socket AM5
PC health monitoring
Fan, Temperature, Voltage
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
AMD
Maximum internal memory supported by processor
192 GB
Compatible processor series
AMD Ryzen 7
Supported processor sockets
Socket AM5
Maximum number of SMP processors
1
Processor socket
Socket AM5
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
8000, 7800, 7600, 7200, 7000, 6800, 6666, 6600, 6400, 6200, 6000, 5600, 5200, 4800, 4400 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 48GB
Maximum internal memory
192 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
8000 MHz
Storage controllers
Number of HDDs supported
3
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 5, 10
Number of storage drives supported
7
RAID support
Yes
Graphics
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.4
USB 2.0 ports quantity
4
WiFi-AP antenna jack
2
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.3
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller model
AMD RZ616
Features
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B650
Supported processor sockets
Socket AM5
PC health monitoring
Fan, Temperature, Voltage
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Product colour
White
Expansion slots
Number of M.2 (M) slots
3
PCI Express x16 slots
3
BIOS
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
5.0
Clear CMOS button
Yes
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
Packaging data
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Package weight
2.19 kg
Software
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Drivers included
Yes
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Battery type
CR2032
Logistics data
Products per shipping (inner) case
1 pc(s)
Weight & dimensions
Height
35 mm
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Package weight
2.19 kg
Width
305 mm
Depth
244 mm
Packaging content
Drivers included
Yes
Cables included
SATA
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Batteries included
Yes
Other features
Height
35 mm
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Package weight
2.19 kg
Gigabyte B650E AORUS ELITE X AX ICE Motherboard - Supports AMD Ryzen 8000 CPUs, 12+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 M2 + 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
