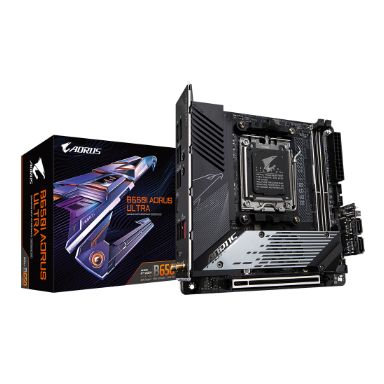

Gigabyte B650I AORUS ULTRA (REV. 1.0) motherboard AMD B650 Socket AM5 mini ITX
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD B650
PC health monitoring
Fan- Temperature- Voltage
HDMI version
2.1
Motherboard form factor
mini ITX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64- Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B650
RAID levels
0- 1- 5- 10
PC health monitoring
Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
mini ITX
Component for
PC
Processor
Processor manufacturer
AMD
Compatible processor series
AMD Ryzen⢠7
Maximum number of SMP processors
1
Processor socket
Socket AM5
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
4400-4800-5200-5600-6000-6200-6400 MHz
Maximum internal memory
64 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2- SATA III
RAID levels
0- 1- 5- 10
RAID support
Yes
Graphics
HDCP
Yes
Internal I/O
Thunderbolt headers
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2- SATA III
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
Number of chassis fan connectors
4
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.4
USB 2.0 ports quantity
2
WiFi-AP antenna jack
2
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a- 802.11b- 802.11g- Wi-Fi 4 (802.11n)- Wi-Fi 5 (802.11ac)- Wi-Fi 6 (802.11ax)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.2
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller model
AMD RZ616
Features
Windows operating systems supported
Windows 10 x64- Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B650
PC health monitoring
Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
mini ITX
Component for
PC
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
HDCP
Yes
Software
Windows operating systems supported
Windows 10 x64- Windows 11 x64
Drivers included
Yes
Weight & dimensions
Width
170 mm
Depth
170 mm
Packaging content
Drivers included
Yes
Cables included
SATA
Gigabyte B650I AORUS ULTRA (REV. 1.0) motherboard AMD B650 Socket AM5 mini ITX
