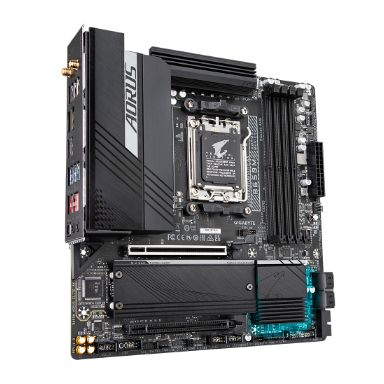

Gigabyte B650M AORUS ELITE AX motherboard AMD B650 Socket AM5 micro ATX
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
2
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Serial port headers
1
Number of SATA III connectors
4
Number of EATX power connectors
1
Number of chassis fan connectors
4
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
USB 3.2 Gen 2x2 connectors
1
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD B650
Supported processor sockets
Socket AM5
Serial port headers
1
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Parallel processing technology support
Not supported
HDMI version
2.1
Motherboard form factor
micro ATX
Component for
PC
Warranty period
3 year(s)
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B650
RAID levels
0, 1, 10
Supported processor sockets
Socket AM5
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
AMD
Compatible processor series
AMD Ryzen⢠3, AMD Ryzen⢠5, AMD Ryzen⢠7, AMD Ryzen 9 7th Gen
Supported processor sockets
Socket AM5
Maximum number of SMP processors
1
Processor socket
Socket AM5
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz
Maximum internal memory
192 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
8000 MHz
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 10
Number of storage drives supported
6
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
DirectX version
12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.4
USB connector type
USB Type-A, USB Type-C
USB 2.0 ports quantity
4
WiFi-AP antenna jack
2
S/PDIF out port
Yes
Microphone in
Yes
Headphone outputs
1
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Digital audio optical out
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
LAN controller
Realtek RTL8125
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.2
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Features
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B650
Supported processor sockets
Socket AM5
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC897
Product colour
Black
Expansion slots
Number of M.2 (M) slots
2
PCI Express x16 (Gen 4.x) slots
2
BIOS
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
DirectX version
12.0
Packaging data
Package width
270 mm
Package depth
268 mm
Package height
68 mm
Package weight
1.73 kg
Software
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Battery type
CR2032
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
Weight & dimensions
Height
35 mm
Package width
270 mm
Package depth
268 mm
Package height
68 mm
Package weight
1.73 kg
Width
244 mm
Depth
244 mm
Packaging content
Cables included
SATA
Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included
Yes
Antenna included
Yes
Other features
Height
35 mm
Package width
270 mm
Package depth
268 mm
Package height
68 mm
Package weight
1.73 kg
Gigabyte B650M AORUS ELITE AX motherboard AMD B650 Socket AM5 micro ATX
