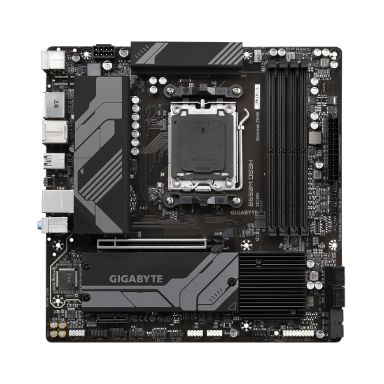

Gigabyte B650M DS3H motherboard AMD B650 Socket AM5 micro ATX
In Stock
|
$137.38
$164.86 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2- PCI Express 4.0- SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Serial port headers
1
Number of SATA III connectors
4
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Number of displays supported
3
Motherboard chipset family
AMD
Motherboard chipset
AMD B650
Supported processor sockets
Socket AM5
Serial port headers
1
PC health monitoring
Fan- Temperature- Voltage
Parallel processing technology support
Not supported
HDMI version
2.1
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64- Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B650
RAID levels
0- 1- 10
Supported processor sockets
Socket AM5
PC health monitoring
Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
AMD
Compatible processor series
AMD Ryzen⢠5- AMD Ryzen 7 7th Gen- AMD Ryzen 9 7th Gen
Supported processor sockets
Socket AM5
Processor socket
Socket AM5
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
4800-5200-5600-6000-6200-6400 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
6400 MHz
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2- PCI Express 4.0- SATA III
RAID levels
0- 1- 10
Number of storage drives supported
6
RAID support
Yes
Graphics
Number of displays supported
3
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.4
USB connector type
USB Type-A- USB Type-C
USB 2.0 ports quantity
4
PS/2 ports quantity
1
Microphone in
Yes
Headphone outputs
3
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
2
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
2.5 Gigabit Ethernet
Features
Windows operating systems supported
Windows 10 x64- Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B650
Supported processor sockets
Socket AM5
PC health monitoring
Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Expansion slots
Number of M.2 (M) slots
2
PCI Express x16 slots
1
PCI Express x1 slots
1
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
Software
Windows operating systems supported
Windows 10 x64- Windows 11 x64
Weight & dimensions
Width
244 mm
Depth
244 mm
Packaging content
Cables included
SATA
Gigabyte B650M DS3H motherboard AMD B650 Socket AM5 micro ATX
