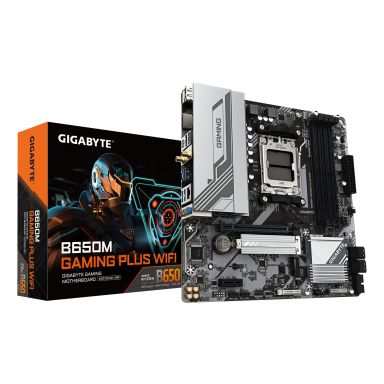

GIGABYTE B650M GAMING PLUS WIFI Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 8000MHz DDR5

Number of M.2 (M) slots

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Front panel connector

Yes

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

TPM connector

Yes

Number of SATA III connectors

4

Number of chassis fan connectors

2

Front panel audio connector

Yes

EPS power connector (8-pin)

Yes

CPU fan connector

Yes

ATX Power connector (24-pin)

Yes

RGB LED pin header

Yes

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

3

Motherboard chipset family

AMD

Motherboard chipset

AMD B650

Supported processor sockets

Socket AM5

PC health monitoring

Fan, Temperature, Voltage

Parallel processing technology support

Not supported

HDMI version

2.1

Cooling type

Passive

Motherboard form factor

micro ATX

Component for

PC

Warranty period

3 year(s)

Audio output channels

7.1 channels

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset family

AMD

Motherboard chipset

AMD B650

RAID levels

0, 1, 10

Supported processor sockets

Socket AM5

PC health monitoring

Fan, Temperature, Voltage

Cooling type

Passive

Audio output channels

7.1 channels

Motherboard form factor

micro ATX

Component for

PC

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported processor sockets

Socket AM5

Processor socket

Socket AM5

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Supported memory clock speeds

8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz

Maximum internal memory

256 GB

Unbuffered memory

Yes

Supported memory clock speed (max)

8000 MHz

ECC сompatibility

Non-ECC

Maximum internal memory per slot

64 GB

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

RAID levels

0, 1, 10

Number of storage drives supported

6

RAID support

Yes

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2160 pixels

HDCP

Yes

DirectX version

12.0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

DisplayPort version

1.4

USB 2.0 ports quantity

2

WiFi-AP antenna jack

2

VGA (D-Sub) ports quantity

0

PS/2 ports quantity

1

Microphone in

Yes

Headphone outputs

1

HDMI version

2.1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

DVI-D ports quantity

0

DisplayPorts quantity

2

Line-in

Yes

Ethernet LAN

Yes

Wi-Fi

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

LAN controller

Realtek RTL8125

Ethernet interface type

2.5 Gigabit Ethernet

Bluetooth

Yes

Bluetooth version

5.3

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

WLAN controller model

Realtek RTL8852CE

Power source type

ATX

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset family

AMD

Motherboard chipset

AMD B650

Supported processor sockets

Socket AM5

PC health monitoring

Fan, Temperature, Voltage

Cooling type

Passive

Audio output channels

7.1 channels

Motherboard form factor

micro ATX

Component for

PC

Audio chip

Realtek ALC897

Product colour

Dark brown

Number of M.2 (M) slots

2

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

1st M.2 largest key size

2580

1st M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

BIOS memory size

256 Mbit

ACPI version

5.0

System Management BIOS (SMBIOS) version

2.7

Desktop Management Interface (DMI) version

2.7

Power source type

ATX

Maximum resolution

4096 x 2160 pixels

HDCP

Yes

DirectX version

12.0

Package width

270 mm

Package depth

268 mm

Package height

68 mm

Package weight

1.53 kg

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery weight

3 g

Number of battery cells

1

Lithium weight per battery

0.07 g

Battery type

CR2032

Products per shipping (inner) case

1 pc(s)

Height

35 mm

Package width

270 mm

Package depth

268 mm

Package height

68 mm

Package weight

1.53 kg

Weight

1.44 kg

Width

244 mm

Depth

244 mm

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Batteries included

Yes

Screws included

Yes

Antenna included

Yes

Height

35 mm

Package width

270 mm

Package depth

268 mm

Package height

68 mm

Package weight

1.53 kg

Weight

1.44 kg
