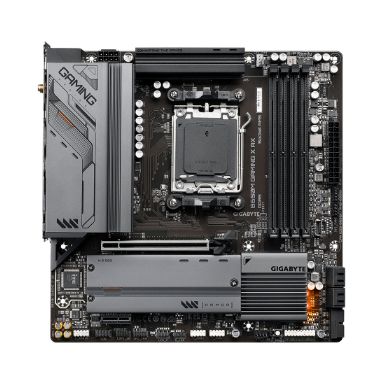

Gigabyte B650M GAMING X AX (rev. 1.x) AMD B650 Socket AM5 micro ATX
0 Reviews
| Add your review
In Stock
|
£128.83
£154.60 (Inc. VAT)
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2- PCI Express 4.0- SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Serial port headers | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Number of displays supported | 3 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Supported processor sockets | Socket AM5 |
| Serial port headers | 1 |
| PC health monitoring | Fan- Temperature- Voltage |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64- Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| RAID levels | 0- 1- 10 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan- Temperature- Voltage |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen™ 5- AMD Ryzen 7 7th Gen- AMD Ryzen 9 7th Gen |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
| Supported memory clock speeds | 4400-4800-5200-5600-6000-6200-6400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 6400 MHz |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2- PCI Express 4.0- SATA III |
| RAID levels | 0- 1- 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Graphics | |
| Number of displays supported | 3 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB connector type | USB Type-A- USB Type-C |
| USB 2.0 ports quantity | 4 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 3 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a- 802.11b- 802.11g- Wi-Fi 4 (802.11n)- Wi-Fi 5 (802.11ac) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Features | |
| Windows operating systems supported | Windows 10 x64- Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan- Temperature- Voltage |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 slots | 1 |
| PCI Express x1 slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Video | |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| Software | |
| Windows operating systems supported | Windows 10 x64- Windows 11 x64 |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
| Cables included | SATA |
