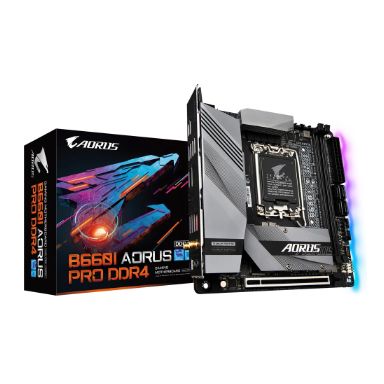

Gigabyte B660I AORUS PRO DDR4 motherboard Intel B660 LGA 1700 mini ITX
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2- SATA III
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Serial port headers
1
Number of SATA III connectors
4
Number of chassis fan connectors
1
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel B660
Serial port headers
1
PC health monitoring
CPU- Fan- Temperature- Voltage
Parallel processing technology support
Not supported
HDMI version
2.1
Motherboard form factor
mini ITX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64- Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel B660
RAID levels
0- 1- 5- 10
PC health monitoring
CPU- Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
mini ITX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®- Intel® Core⢠i3- Intel® Core⢠i5- Intel® Core⢠i7- Intel® Core⢠i9- Intel® Pentium®
Maximum number of SMP processors
1
Processor socket
LGA 1700
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2666-2933-3000-3200-3300-3333-3400-3466-3600-3666-3733-3800-3866-4000-4133-4266-4300-4400-4500-4600-4700-4800-4933-5000-5133-5333 MHz
Maximum internal memory
64 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2- SATA III
RAID levels
0- 1- 5- 10
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.2
USB 2.0 ports quantity
2
WiFi-AP antenna jack
2
S/PDIF out port
Yes
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Digital audio optical out
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a- 802.11b- 802.11g- Wi-Fi 4 (802.11n)- Wi-Fi 5 (802.11ac)- Wi-Fi 6 (802.11ax)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.2
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Features
Windows operating systems supported
Windows 10 x64- Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel B660
PC health monitoring
CPU- Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
mini ITX
Component for
PC
Harmonized System (HS) code
84733020
Expansion slots
Number of M.2 (M) slots
1
PCI Express x16 slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
Software
Windows operating systems supported
Windows 10 x64- Windows 11 x64
Drivers included
Yes
Weight & dimensions
Height
70 mm
Weight
1 kg
Width
170 mm
Depth
170 mm
Packaging content
Drivers included
Yes
Cables included
SATA
Other features
Height
70 mm
Weight
1 kg
Gigabyte B660I AORUS PRO DDR4 motherboard Intel B660 LGA 1700 mini ITX
