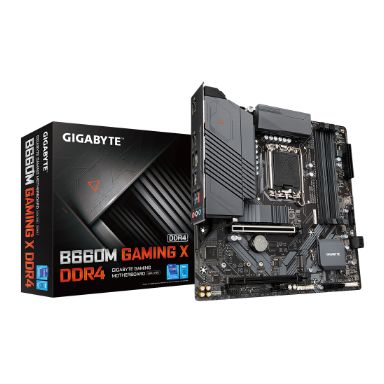

Gigabyte B660M GAMING X DDR4 motherboard Intel B660 LGA 1700 micro ATX
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
2
Thunderbolt headers
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2- SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Serial port headers
1
S/PDIF out connector
Yes
Number of SATA III connectors
4
Number of chassis fan connectors
3
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel B660
Serial port headers
1
PC health monitoring
CPU- Fan- Temperature- Voltage
Parallel processing technology support
2-Way CrossFireX- Quad-GPU CrossFireX
HDMI version
2.1
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64- Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel B660
RAID levels
0- 1- 5- 10
PC health monitoring
CPU- Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®- Intel® Core⢠i3- Intel® Core⢠i5- Intel® Core⢠i7- Intel® Core⢠i9- Intel® Pentium®
Maximum number of SMP processors
1
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2666-2933-3000-3200-3300-3333-3400-3466-3600-3666-3733-3800-3866-4000-4133-4266-4300-4400 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2- SATA III
RAID levels
0- 1- 5- 10
RAID support
Yes
Graphics
Parallel processing technology support
2-Way CrossFireX- Quad-GPU CrossFireX
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
DisplayPort version
1.2
USB 2.0 ports quantity
5
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
2.5 Gigabit Ethernet
Features
Windows operating systems supported
Windows 10 x64- Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel B660
PC health monitoring
CPU- Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Harmonized System (HS) code
84733020
Expansion slots
Number of M.2 (M) slots
2
PCI Express x16 slots
2
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
Software
Windows operating systems supported
Windows 10 x64- Windows 11 x64
Drivers included
Yes
Weight & dimensions
Height
70 mm
Weight
1 kg
Width
244 mm
Depth
244 mm
Packaging content
Drivers included
Yes
Cables included
SATA
Other features
Height
70 mm
Weight
1 kg
