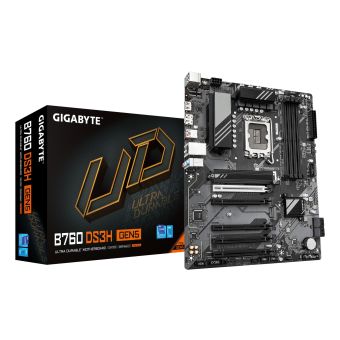

GIGABYTE B760 DS3H GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 2x2

Number of M.2 (M) slots

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Front panel connector

Yes

12V power connector

Yes

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

TPM connector

Yes

Serial port headers

1

S/PDIF out connector

Yes

Number of SATA III connectors

4

Number of chassis fan connectors

4

Front panel audio connector

Yes

EPS power connector (8-pin)

Yes

CPU fan connector

Yes

ATX Power connector (24-pin)

Yes

RGB LED pin header

Yes

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

1

Number of water pump connectors

2

Number of RGB LED pin headers

4

Motherboard chipset family

Intel

Motherboard chipset

Intel B760 Express

Supported processor sockets

LGA 1700

Serial port headers

1

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Parallel processing technology support

Not supported

HDMI version

2.1

Cooling type

Passive

Motherboard form factor

ATX

Component for

PC

Warranty period

3 year(s)

Audio output channels

7.1 channels

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset family

Intel

Motherboard chipset

Intel B760 Express

RAID levels

0, 1, 5, 10

Supported processor sockets

LGA 1700

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Cooling type

Passive

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Processor manufacturer

Intel

Compatible processor series

Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold

Supported processor sockets

LGA 1700

Processor socket

LGA 1700

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Supported memory clock speeds

5600,5200,4800,4400 MHz

Maximum internal memory

256 GB

Unbuffered memory

Yes

Supported memory clock speed (max)

5600 MHz

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

RAID levels

0, 1, 5, 10

Number of storage drives supported

6

RAID support

Yes

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2304 pixels

HDCP

Yes

DirectX version

12.0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

DisplayPort version

1.2

USB 2.0 ports quantity

4

VGA (D-Sub) ports quantity

0

PS/2 ports quantity

1

Microphone in

Yes

Headphone outputs

1

HDMI version

2.1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

DVI-D ports quantity

0

DisplayPorts quantity

1

USB 3.2 Gen 2x2 Type-C ports quantity

1

Line-in

Yes

Ethernet LAN

Yes

Wi-Fi

No

LAN controller

Realtek RTL8111H

Ethernet interface type

Gigabit Ethernet

Power source type

ATX

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset family

Intel

Motherboard chipset

Intel B760 Express

Supported processor sockets

LGA 1700

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Cooling type

Passive

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Audio chip

Realtek ALC897

Product colour

Dark brown

Number of M.2 (M) slots

2

PCI Express x16 (Gen 3.x) slots

4

PCI Express x16 (Gen 5.x) slots

1

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

BIOS memory size

128 Mbit

ACPI version

5.0

System Management BIOS (SMBIOS) version

2.7

Desktop Management Interface (DMI) version

2.7

Power source type

ATX

Maximum resolution

4096 x 2304 pixels

HDCP

Yes

DirectX version

12.0

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Package weight

1.5 kg

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery weight

3 g

Number of battery cells

1

Lithium weight per battery

0.07 g

Battery type

CR2032

Products per shipping (inner) case

1 pc(s)

Country of origin

China

Height

35 mm

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Package weight

1.5 kg

Weight

1.32 kg

Width

305 mm

Depth

244 mm

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Batteries included

Yes

Screws included

Yes

Height

35 mm

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Package weight

1.5 kg

Weight

1.32 kg
