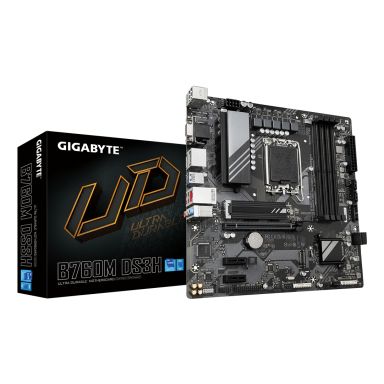

Gigabyte B760M DS3H Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen
In Stock
|
$111.41
$133.69 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
2
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Serial port headers
1
S/PDIF out connector
Yes
Parallel connector
Yes
Number of SATA III connectors
4
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel B760 Express
Supported processor sockets
LGA 1700
Serial port headers
1
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Parallel processing technology support
Not supported
HDMI version
2.0
Motherboard form factor
micro ATX
Component for
PC
Maximum internal memory supported by processor
192 GB
Warranty period
3 year(s)
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel B760 Express
RAID levels
0, 1, 5, 10
Supported processor sockets
LGA 1700
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Maximum internal memory supported by processor
192 GB
Compatible processor series
Intel® Celeron®, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9, Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Maximum internal memory
192 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
7600 MHz
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 5, 10
Number of storage drives supported
6
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2304 pixels
HDCP
Yes
DirectX version
12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.2
USB connector type
USB Type-A, USB Type-C
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
1
Microphone in
Yes
Headphone outputs
3
HDMI version
2.0
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
2
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
2.5 Gigabit Ethernet
Features
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel B760 Express
Supported processor sockets
LGA 1700
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Product colour
Brown
Expansion slots
Number of M.2 (M) slots
2
PCI Express x16 slots
1
PCI Express x1 slots
2
BIOS
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
128 Mbit
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
Maximum resolution
4096 x 2304 pixels
HDCP
Yes
DirectX version
12.0
Packaging data
Package width
265 mm
Package depth
265 mm
Package height
54 mm
Package weight
1.12 kg
Software
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Bundled software
Norton Internet Security
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Battery type
CR2032
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
Weight & dimensions
Height
35 mm
Package width
265 mm
Package depth
265 mm
Package height
54 mm
Package weight
1.12 kg
Width
244 mm
Depth
244 mm
Packaging content
Cables included
SATA
Bundled software
Norton Internet Security
Other features
Height
35 mm
Package width
265 mm
Package depth
265 mm
Package height
54 mm
Package weight
1.12 kg
Gigabyte B760M DS3H Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen
