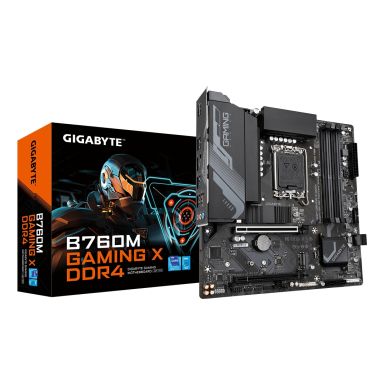

Gigabyte B760M GAMING X DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen2
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
2
Thunderbolt headers
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Total number of SATA connectors
4
Front panel connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Serial port headers
1
S/PDIF out connector
Yes
Number of SATA III connectors
4
Number of chassis fan connectors
3
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel B760 Express
Supported processor sockets
LGA 1700
Serial port headers
1
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Parallel processing technology support
Not supported
HDMI version
2.0
Motherboard form factor
micro ATX
Component for
PC
Total number of SATA connectors
4
Maximum internal memory supported by processor
128 GB
Warranty period
3 year(s)
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel B760 Express
RAID levels
0, 1, 5, 10
Supported processor sockets
LGA 1700
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Maximum internal memory supported by processor
128 GB
Compatible processor series
Intel® Celeron®, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9, Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
2133,2400,2666,2933,3000,3200,3300,3333,3400,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
5333 MHz
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 5, 10
Number of storage drives supported
6
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2304 pixels
HDCP
Yes
DirectX version
12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 2.0 ports quantity
5
Microphone in
Yes
Headphone outputs
1
HDMI version
2.0
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Line-in
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
2.5 Gigabit Ethernet
Features
Power source type
ATX
Windows operating systems supported
Windows 10, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel B760 Express
Supported processor sockets
LGA 1700
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Product colour
Brown
Expansion slots
Number of M.2 (M) slots
2
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
BIOS
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Power
Power source type
ATX
Video
Maximum resolution
4096 x 2304 pixels
HDCP
Yes
DirectX version
12.0
Packaging data
Package width
270 mm
Package depth
268 mm
Package height
68 mm
Package weight
1.57 kg
Software
Windows operating systems supported
Windows 10, Windows 11
Bundled software
Norton Internet Security
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Battery type
CR2032
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
Weight & dimensions
Height
35 mm
Package width
270 mm
Package depth
268 mm
Package height
68 mm
Package weight
1.57 kg
Width
244 mm
Depth
244 mm
Packaging content
Bundled software
Norton Internet Security
Batteries included
Yes
Other features
Height
35 mm
Package width
270 mm
Package depth
268 mm
Package height
68 mm
Package weight
1.57 kg
Gigabyte B760M GAMING X DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen2
