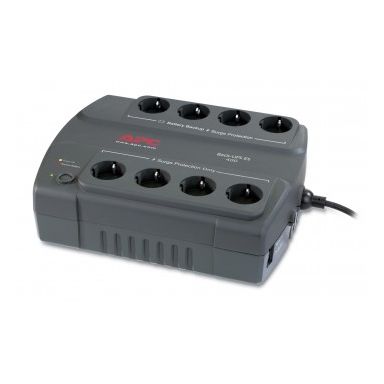

APC Back-UPS uninterruptible power supply (UPS) Standby (Offline) 400 VA 240 W
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Power
Output frequency regulation
47 - 63 Hz
Output power
240 W
Input operation voltage (min)
180 V
Input operation voltage (max)
266 V
Surge energy rating
310 J
Maximum current
0.41666666666667
Efficiency
0.987
Output power capacity
400 VA
Ports & interfaces
Cable length
1.83 m
Number of type F outputs
8
AC outlet types
Type F
Performance
Hold time (min)
6 ms
Hold time (max)
10 ms
UPS topology
Standby (Offline)
Waveform
Sine
LED indicators
Yes
Surge protection
Yes
Noise level
45 dB
Audible alarm(s)
Yes
Features
Hold time (min)
6 ms
Hold time (max)
10 ms
UPS topology
Standby (Offline)
Waveform
Sine
Output frequency regulation
47 - 63 Hz
Output power
240 W
Input operation voltage (min)
180 V
Input operation voltage (max)
266 V
Surge energy rating
310 J
Maximum current
0.41666666666667
Efficiency
0.987
Surge protection
Yes
Noise level
45 dB
Audible alarm(s)
Yes
Output power capacity
400 VA
Input frequency
50/60 Hz
Battery
Battery life (max)
5 year(s)
Battery capacity
102 VAh
Battery voltage
12 V
Battery capacity
6 Ah
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
16 h
Typical backup time at half load
18.2 min
Typical backup time at full load
5.3 min
Automatic battery test
Yes
Design
Form factor
Compact
LED indicators
Yes
Product colour
Gray
Energy Star certified
Yes
Certification
CE GOST NEMKO REACH PEP EOLI
Cable length
1.83 m
RoHS compliance
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 15000 m
Non-operating altitude
0 - 15000 m
Technical details
Output voltage
230 V
Packaging data
Packaging content
Wall-mounting template
Manual
Yes
Package width
300 mm
Package depth
366 mm
Package height
132 mm
Package weight
5.6 kg
Weight & dimensions
Weight
5.4 kg
Width
230 mm
Height
86 mm
Depth
285 mm
Package width
300 mm
Package depth
366 mm
Package height
132 mm
Package weight
5.6 kg
Logistics data
Quantity per master (outer) case
2 pc(s)
Quantity per pallet
48 pc(s)
Certificates
Energy Star certified
Yes
Certification
CE GOST NEMKO REACH PEP EOLI
RoHS compliance
Yes
Other features
Output voltage
230 V
Packaging content
Wall-mounting template
Filtering
Yes
Nominal output voltage
230 V
Packaging content
Manual
Yes
Packaging content
Wall-mounting template
APC Back-UPS uninterruptible power supply (UPS) Standby (Offline) 400 VA 240 W
| Length | 28.50 cm |
| Width | 23.00 cm |
| Height | 8.60 cm |
| Weight | 5.400000 kgs |
