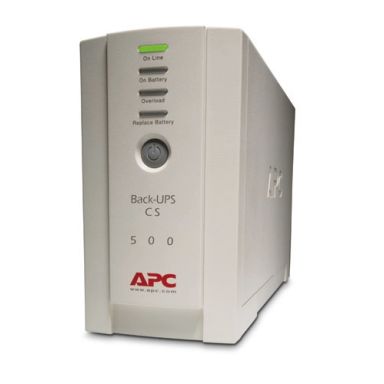

APC Back-UPS uninterruptible power supply UPS

APC Back-UPS uninterruptible power supply UPS

   0 Reviews   | Add your review
In Stock In Stock
Brand: APC
SKU: BK500EI
Condition: NEW
Delivery: Next Day*
Product Type: Power Supplies
£120.36
£144.43 (Inc. VAT)
Specifications
Power
Output frequency regulation47 - 63 Hz
Output power300 W
Input operation voltage (min)160 V
Input operation voltage (max)300 V
Surge energy rating310 J
Maximum current0.29166666666667
Efficiency0.99
Output power capacity500 VA
Ports & interfaces
Cable length1.83 m
USB portYes
AC outlets quantity4 AC outlet(s)
AC outlet typesC13 coupler
Power plugC14 coupler
Number of output IEC jumpers2
Performance
Hold time (min)6 ms
Hold time (max)10 ms
Audible alarm modesLow battery alarmOverload alarm
UPS topologyStandby (Offline)
WaveformSine
LED indicatorsBattery replacement
Surge protectionYes
Power protection featuresOverload
Noise level40 dB
Audible alarm(s)Yes
Features
Hold time (min)6 ms
Hold time (max)10 ms
Audible alarm modesLow battery alarmOverload alarm
UPS topologyStandby (Offline)
WaveformSine
Output frequency regulation47 - 63 Hz
Output power300 W
Input operation voltage (min)160 V
Input operation voltage (max)300 V
Surge energy rating310 J
Maximum current0.29166666666667
Efficiency0.99
Surge protectionYes
Power protection featuresOverload
Noise level40 dB
Audible alarm(s)Yes
Output power capacity500 VA
Input frequency50/60 Hz
Battery
Battery capacity83 VAh
Battery voltage12 V
Battery capacity7 Ah
Battery technologySealed Lead Acid (VRLA)
Battery recharge time8 h
Typical backup time at half load13.8 min
Typical backup time at full load3.8 min
Automatic battery testYes
Design
Form factorTower
LED indicatorsBattery replacement
Product colourBeige
Energy Star certifiedYes
Cable length1.83 m
RoHS complianceYes
Operational conditions
Operating temperature (T-T)0 - 40 ‚°C
Storage temperature (T-T)-15 - 45 ‚°C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Packaging data
Quick installation guideYes
Cables includedPhone (RJ-11)USB cable
Warranty cardYes
Software CDYes
Package width241 mm
Package depth368 mm
Package height178 mm
Bundled softwarePowerChute Personal Edition
Package weight7.05 kg
Weight & dimensions
Weight6.32 kg
Width91 mm
Height165 mm
Depth284 mm
Package width241 mm
Package depth368 mm
Package height178 mm
Package weight7.05 kg
Logistics data
Quantity per master (outer) case1 pc(s)
Quantity per pallet48 pc(s)
Certificates
Energy Star certifiedYes
CertificationC-tick CE EN 50091-1 EN 50091-2 GOST VDE REACH
RoHS complianceYes
Other features
FilteringYes
Nominal output voltage230 V
Nominal input voltage230 V
Packaging content
Quick installation guideYes
Cables includedPhone (RJ-11)USB cable
