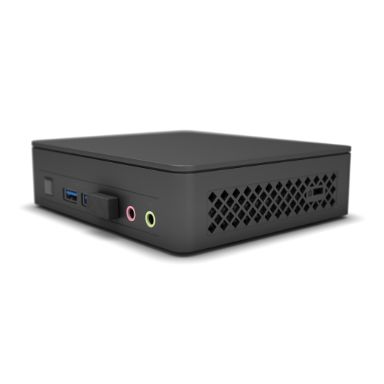

Intel NUC BNUC11ATKC20RA0
Out of Stock
|
Call For Price (0808 189 1246)
Processor
Processor lithography
10 nm
Memory types supported by processor
DDR4-SDRAM
Thermal Design Power (TDP)
10 W
Processor cache
4 MB
Processor frequency
2 GHz
Processor model
N4505
Processor manufacturer
Intel
Processor boost frequency
2.9 GHz
Processor threads
2
Processor cores
2
PCI Express slots version
3.0
Processor family
Intel® Celeron® N
Memory
ECC
No
Memory layout (slots x size)
1 x 4 GB
Internal memory
4 GB
Maximum internal memory
32 GB
Memory slots
2x SO-DIMM
Internal memory type
DDR4-SDRAM
Memory clock speed
2933 MHz
Number of DIMM slots
2
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Storage
Storage media
eMMC
Number of storage drives installed
1
Number of storage drives supported
1
Optical drive type
No
Total storage capacity
64 GB
SSD form factor
M.2
Graphics
Discrete graphics card
No
On-board graphics card
No
Discrete graphics card model
Not available
On-board graphics card model
Intel® UHD Graphics
Optical drive
Optical drive type
No
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Bluetooth
Yes
Bluetooth version
5.0
Wi-Fi standards
Wi-Fi 5 (802.11ac)
Ethernet LAN data rates
10-100-1000 Mbit/s
WLAN controller model
Intel Dual Band Wireless-AC 9462
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
WLAN controller manufacturer
Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
HDMI version
2.0b
USB 2.0 ports quantity
2
Microphone in
Yes
Headphone outputs
1
HDMI ports quantity
1
DisplayPorts quantity
1
M.2 card slot (wireless)
1
M.2 card slot (storage)
1
DisplayPort version
1.4
Expansion slots
PCI Express slots version
3.0
Technical details
Water cooling system
No
Intel 64
Yes
Intel® High Definition Audio (Intel® HD Audio)
Yes
Product type
Mini PC
Product colour
Black
Chassis type
UCFF
Placement supported
Horizontal/Vertical
Design
Water cooling system
No
Product colour
Black
Chassis type
UCFF
Placement supported
Horizontal/Vertical
Product series
Intel® NUC Mini PC with Intel® Celeron® Processors
Intel® vPro™ Platform Eligibility
No
Introduction year
2022
Performance
Number of displays supported
2
Product type
Mini PC
Harmonized System (HS) code
84715000
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Status
Launched
Software
Operating system architecture
64-bit
Compatible operating systems
Windows 10*|Linux*
Operating system installed
Windows 11 Home
Processor special features
Enhanced Intel SpeedStep Technology
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Trusted Execution Technology
No
Intel® AES New Instructions (Intel® AES-NI)
Yes
Idle States
Yes
Intel Software Guard Extensions (Intel SGX)
No
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
CPU configuration (max)
1
Intel Virtualization Technology (VT-x)
Yes
Processor ARK ID
217676
Intel 64
Yes
Intel® High Definition Audio (Intel® HD Audio)
Yes
Intel® Platform Trust Technology (Intel® PTT)
Yes
Intel® vPro™ Platform Eligibility
No
Power
Power supply
65 W
DC input voltage
19 V
Weight & dimensions
Width
135 mm
Depth
115 mm
Height
36 mm
Packaging content
Display included
No
Logistics data
Harmonized System (HS) code
84715000
Other features
Number of displays supported
2
USB ports quantity
6
On-board graphics card
No
Processor manufacturer
Intel
Ethernet interface type
Gigabit Ethernet
Compatible operating systems
Windows 10*|Linux*
Harmonized System (HS) code
84715000
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Intel NUC BNUC11ATKC20RA0
| Weight | 1.00 kgs |
