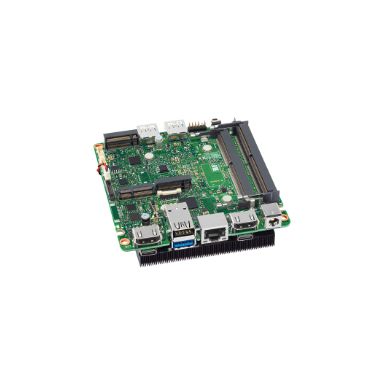

Intel NUC11TNBi3 BGA 1449 UCFF
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Number of displays supported
4
Motherboard chipset family
Intel
Serial port via internal header
Yes
Parallel processing technology support
Not supported
On-board graphics card
No
Number of DIMM slots
2
Intel® AES New Instructions (Intel® AES-NI)
Yes
Motherboard form factor
UCFF
Component for
mini PC
USB ports quantity
4
Thermal Design Power (TDP)
15 W
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Total number of SATA connectors
1
Status
Launched
Launch date
Q1'21
Intel Virtualization Technology (VT-x)
Yes
M.2 card slot (wireless)
2230 (E-key) (E)
M.2 card slot (storage)
2280 NVMe (M); 2242 SATA (B)
Performance
Intel ME Firmware Version
15
HDD size
2.5"
Supported storage drive types
HDD & SSD
Motherboard ARK ID
205598
Windows operating systems supported
Windows 10 x64- Windows 10 IoT Enterprise
Linux operating systems supported
RedHat EL Linux- Ubuntu 20.04 LTS
Motherboard chipset family
Intel
Intel® AES New Instructions (Intel® AES-NI)
Yes
Motherboard form factor
UCFF
Component for
mini PC
Processor
Processor manufacturer
Intel
Processor cores
2
Thermal Design Power (TDP)
15 W
Processor model
i3-1115G4
Compatible processor series
Intel® Core⢠i5- Intel® Core⢠i7
Processor socket
BGA 1449
Processor family
Intel® Core⢠i3
Processor lithography
10 nm
Lithography
10 nm
Memory
Number of memory slots
2
Memory slots type
SO-DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Memory voltage
1.2 V
ECC
No
Supported memory clock speeds
3200 MHz
Maximum internal memory
64 GB
Storage controllers
HDD size
2.5"
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2- SATA III
Number of storage drives supported
3
SSD form factor
M.2
Graphics
Number of displays supported
4
Parallel processing technology support
Not supported
On-board graphics card
No
Graphics card family
Intel
Internal I/O
Total number of SATA connectors
1
Supported storage drive interfaces
M.2- SATA III
USB 2.0 connectors
2
Serial port via internal header
Yes
Number of SATA connectors
1
Number of SATA III connectors
1
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 2.0 ports quantity
1
Thunderbolt ports quantity
2
HDMI ports quantity
2
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel I225-LM
Ethernet interface type
2.5 Gigabit Ethernet
Features
DC input voltage
12 - 24 V
Motherboard ARK ID
205598
Windows operating systems supported
Windows 10 x64- Windows 10 IoT Enterprise
Linux operating systems supported
RedHat EL Linux- Ubuntu 20.04 LTS
Motherboard chipset family
Intel
Compatible operating systems
Windows 10 IoT Enterprise*|Linux*
Motherboard form factor
UCFF
Component for
mini PC
Harmonized System (HS) code
84733020
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Export Control Classification Number (ECCN)
5A992C
Expansion slots
PCI Express slots version
4.0
Power
DC input voltage
12 - 24 V
Processor special features
Intel ME Firmware Version
15
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel® Optane⢠Memory Ready
No
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel® Platform Trust Technology (Intel® PTT)
Yes
Ports & interfaces
Additional headers
Front_panel (PWR- RST- 5V- 5Vsby- 3.3Vsby); Internal 2x2 power connector
Video
Graphics card family
Intel
Software
Windows operating systems supported
Windows 10 x64- Windows 10 IoT Enterprise
Linux operating systems supported
RedHat EL Linux- Ubuntu 20.04 LTS
Logistics data
Harmonized System (HS) code
84733020
Weight & dimensions
Width
101.6 mm
Depth
101.6 mm
Other features
HDD size
2.5"
Thermal Design Power (TDP)
15 W
Motherboard ARK ID
205598
Serial port via internal header
Yes
Number of DIMM slots
2
Compatible operating systems
Windows 10 IoT Enterprise*|Linux*
Processor family
Intel® Core⢠i3
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Export Control Classification Number (ECCN)
5A992C
Processor lithography
10 nm
Additional headers
Front_panel (PWR- RST- 5V- 5Vsby- 3.3Vsby); Internal 2x2 power connector
Processor generation
11th gen Intel® Core⢠i3
Intel NUC11TNBi3 BGA 1449 UCFF
