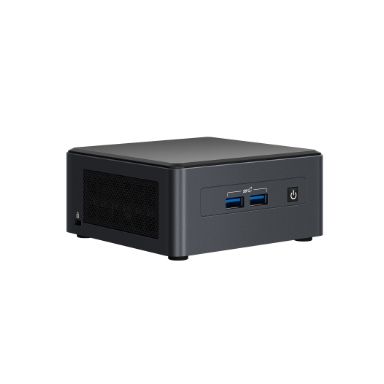

Intel NUC 11 Pro UCFF Black i7-1165G7
0 Reviews
| Add your review
In Stock
|
£637.35
£764.82 (Inc. VAT)
| Motherboard | |
|---|---|
| Motherboard form factor | UCFF |
| Processor | |
| Thermal Design Power (TDP) | 28 W |
| Built-in processor | Yes |
| Processor model | i7-1165G7 |
| Processor boost frequency | 4.7 GHz |
| Processor threads | 8 |
| Processor lithography | 10 nm |
| Processor cores | 4 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| CPU configuration (max) | 1 |
| Processor cache | 12 MB |
| Processor generation | 11th gen Intel® Core™ i7 |
| Memory | |
| Memory voltage | 1.2 V |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| ECC | No |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 3200 MHz |
| Maximum internal memory | 64 GB |
| Number of DIMM slots | 2 |
| Video | |
| On-board graphics card | No |
| Graphics card family | Intel |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | M.2-2.5 |
| Storage drive interface | M.2- Serial ATA III |
| Number of storage drives supported | 3 |
| SSD form factor | M.2 |
| Graphics | |
| Number of displays supported | 4 |
| On-board graphics card | No |
| Graphics card family | Intel |
| On-board graphics card model | Intel Iris Xe Graphics |
| Discrete graphics card model | Not available |
| Audio | |
| Built-in speaker(s) | No |
| Network | |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Intel I225-LM |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Ports & interfaces | |
| Thunderbolt ports quantity | 2 |
| Serial port via internal header | Yes |
| Number of SATA III connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Internal USB 2.0 ports quantity | 2 |
| DisplayPorts quantity | 1 |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| M.2 card slot (wireless) | 2230 (E-key) (E) |
| Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| USB ports quantity | 4 |
| Thunderbolt 3 ports quantity | 1 |
| M.2 card slot (storage) | 2280 NVMe (M); 2242 SATA (B) |
| Expansion slots | |
| PCI Express slots version | 4.0 |
| Design | |
| Motherboard form factor | UCFF |
| Product type | Mini PC barebone |
| ARK ID | 205605 |
| On/off switch | Yes |
| Product colour | Black |
| Chassis type | UCFF |
| Status | Launched |
| Performance | |
| Motherboard form factor | UCFF |
| Windows operating systems supported | Windows 10 x64- Windows 10 IoT Enterprise |
| Linux operating systems supported | RedHat EL Linux- Ubuntu 20.04 LTS |
| Number of displays supported | 4 |
| Compatible operating systems | Windows 10 IoT Enterprise*|Linux* |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Harmonized System (HS) code | 84713000 |
| Export Control Classification Number (ECCN) | 5A992C |
| Software | |
| Compatible operating systems | Windows 10 IoT Enterprise*|Linux* |
| Processor special features | |
| Intel ME Firmware Version | 15 |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | No |
| Idle States | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Optane™ Memory Ready | No |
| Embedded options available | No |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Colour | |
| Product colour | Black |
| Power | |
| DC input voltage | 12 - 20 V |
| AC adapter output voltage | 12 - 24 V |
| Power supply type | External AC adapter |
| Power supply | 28 W |
| Number of power supply units | 1 |
| Technical details | |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Embedded options available | No |
| Processor cores | 4 |
| Chassis type | UCFF |
| ARK ID | 205605 |
| Internal I/O | |
| Number of SATA connectors | 1 |
| Management features | |
| On/off switch | Yes |
| Features | |
| Number of displays supported | 4 |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
| Weight & dimensions | |
| Width | 117 mm |
| Depth | 112 mm |
| Height | 54 mm |
| Other features | |
| DC input voltage | 12 - 20 V |
| Embedded options available | No |
| Number of SATA connectors | 1 |
| HDD size | 2.5" |
| Chassis type | UCFF |
| Additional headers | Front_panel (PWR- RST- 5V- 5Vsby- 3.3Vsby); Internal 2x2 power connector |
| Launch date | Q1'21 |
Intel NUC 11 Pro UCFF Black i7-1165G7
