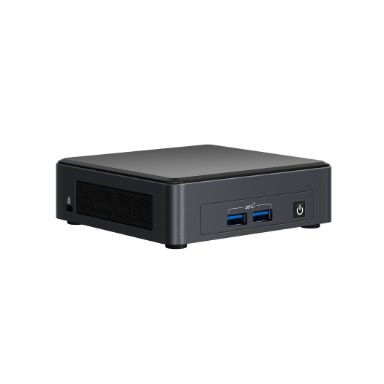

Intel NUC 11 Pro UCFF Black i5-1135G7

Motherboard form factor

UCFF

Thermal Design Power (TDP)

28 W

Built-in processor

Yes

Processor model

i5-1135G7

Processor boost frequency

4.2 GHz

Processor threads

8

Processor lithography

10 nm

Processor cores

4

Processor family

Intel® Core™ i5

Processor manufacturer

Intel

CPU configuration (max)

1

Processor cache

8 MB

Processor generation

11th gen Intel® Core™ i5

Memory slots type

SO-DIMM

Number of memory slots

2

Memory channels

Dual-channel

ECC

No

Supported memory types

DDR4-SDRAM

Supported memory clock speeds

3200 MHz

Maximum internal memory

64 GB

Number of DIMM slots

2

On-board graphics card

No

Graphics card family

Intel

Supported storage drive types

SSD

Storage drive sizes supported

M.2

Storage drive interface

M.2

Number of storage drives supported

2

SSD form factor

M.2

Number of displays supported

4

On-board graphics card

No

Graphics card family

Intel

On-board graphics card model

Intel Iris Xe Graphics

Discrete graphics card model

Not available

Built-in speaker(s)

No

Wi-Fi standards

Wi-Fi 6 (802.11ax)

Bluetooth

Yes

Ethernet LAN

Yes

Wi-Fi

Yes

LAN controller

Intel I225-LM

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

WLAN controller model

Intel Wi-Fi 6 AX201

Thunderbolt ports quantity

2

Serial port via internal header

Yes

DC-in jack

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Internal USB 2.0 ports quantity

2

DisplayPorts quantity

1

USB 2.0 ports quantity

1

HDMI ports quantity

2

Ethernet LAN (RJ-45) ports

1

M.2 card slot (wireless)

2230 (E-key) (E)

Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity

1

USB ports quantity

4

Thunderbolt 3 ports quantity

1

M.2 card slot (storage)

2280 NVMe (M); 2242 SATA (B)

PCI Express slots version

4.0

Motherboard form factor

UCFF

Product type

Mini PC barebone

ARK ID

205603

On/off switch

Yes

Product colour

Black

Chassis type

UCFF

Status

Launched

Motherboard form factor

UCFF

Windows operating systems supported

Windows 10 x64- Windows 10 IoT Enterprise

Linux operating systems supported

RedHat EL Linux- Ubuntu 20.04 LTS

Number of displays supported

4

Compatible operating systems

Windows 10 IoT Enterprise*|Linux*

Commodity Classification Automated Tracking System (CCATS)

G157815L2

Harmonized System (HS) code

84713000

Export Control Classification Number (ECCN)

5A992C

Compatible operating systems

Windows 10 IoT Enterprise*|Linux*

Intel ME Firmware Version

15

Intel Stable Image Platform Program (SIPP)

No

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel Trusted Execution Technology

No

Idle States

Yes

Intel® AES New Instructions (Intel® AES-NI)

Yes

Intel® Optane™ Memory Ready

No

Embedded options available

No

Intel® Platform Trust Technology (Intel® PTT)

Yes

Intel Virtualization Technology (VT-x)

Yes

Product colour

Black

DC input voltage

12 - 20 V

AC adapter output voltage

12 - 24 V

Power supply type

External AC adapter

Power supply

28 W

Number of power supply units

1

Intel® AES New Instructions (Intel® AES-NI)

Yes

Embedded options available

No

Processor cores

4

Chassis type

UCFF

ARK ID

205603

On/off switch

Yes

Number of displays supported

4

Harmonized System (HS) code

84713000

Width

117 mm

Depth

112 mm

Height

37 mm

DC input voltage

12 - 20 V

Embedded options available

No

Chassis type

UCFF

Additional headers

Front_panel (PWR- RST- 5V- 5Vsby- 3.3Vsby); Internal 2x2 power connector

Launch date

Q1'21
