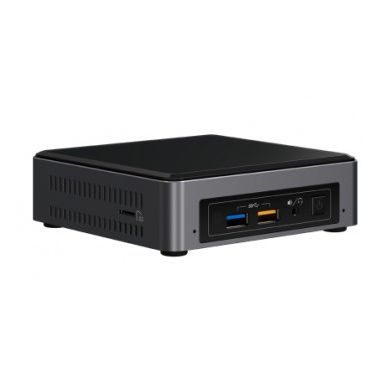

Intel BOXNUC7I5BNK PC/workstation barebone i5-7260U 2.2 GHz UCFF Black
Out of Stock
|
Call For Price (0808 189 1246)
Motherboard
Motherboard form factor
UCFF
Number of processors supported
1
Processor
Thermal Design Power (TDP)
15 W
L3 cache
4 MB
Built-in processor
Yes
Processor model
i5-7260U
Processor boost frequency
3.4 GHz
Processor threads
4
Processor frequency
2.2 GHz
Processor lithography
14 nm
Processor cores
2
Processor family
Intel Core i5
Number of processors supported
1
Processor manufacturer
Intel
Processor codename
Kaby Lake
CPU configuration (max)
1
Memory bandwidth supported by processor (max)
34.1 GB/s
Processor cache
4 MB
Processor generation
7th gen Intel® Core™ i5
Memory
Memory voltage
1.2 V
Memory slots type
SO-DIMM
Number of memory slots
2
Memory channels
Dual-channel
Memory bandwidth (max)
34.1 GB/s
ECC
No
Supported memory types
DDR4-SDRAM
Supported memory clock speeds
2133 MHz
Maximum internal memory
32 GB
Number of DIMM slots
2
Video
On-board graphics adapter
Yes
Graphics adapter family
Intel
Storage
Supported storage drive types
HDD & SSD
Storage drive sizes supported
M.2
Storage drive interface
M.2
Number of storage drives supported
1
Compatible memory cards
SDXC
Card reader integrated
Yes
SSD form factor
M.2
Graphics
Number of displays supported
3
On-board graphics adapter
Yes
Graphics adapter family
Intel
Audio
Intel® High Definition Audio (Intel® HD Audio)
Yes
Audio output channels
7.1 channels
Network
Bluetooth version
4.2
Bluetooth
Yes
Ethernet LAN
Yes
Wi-Fi
Yes
LAN controller
Intel® I219-V
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Ports & interfaces
Consumer infrared headers
Yes
Combo headphone/mic port
Yes
Number of SATA III connectors
2
DC-in jack
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Internal USB 2.0 ports quantity
2
HDMI version
2.0a
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity
6
Thunderbolt 3 ports quantity
1
M.2 card slot (storage)
2242/2280
Graphics output
HDMI 2.0a; USB-C (DP1.2)
Expansion slots
PCI Express slots version
3
PCI Express configurations
1x2+2x1-1x4-2x2-4x1
Design
Motherboard form factor
UCFF
Product type
Mini PC barebone
ARK ID
95061
On/off switch
Yes
LED indicators
Yes
Cooling type
Active
Product colour
Black- Grey
Chassis type
UCFF
Product codename
Baby Canyon
Status
Discontinued
Performance
Motherboard form factor
UCFF
Intel Visual BIOS
Yes
Intel Express BIOS update
Yes
BIOS type
EEPROM
Number of displays supported
3
Trusted Platform Module (TPM)
No
Operating system installed
No
Number of processors supported
1
Compatible operating systems
Windows 10- 64-bit*
BIOS memory size
64 Mbit
Audio output channels
7.1 channels
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Harmonized System (HS) code
8471500150
Export Control Classification Number (ECCN)
5A992C
Consumer infrared Rx sensor
Yes
Supported RAID configuration
N/A
Software
Operating system installed
No
Compatible operating systems
Windows 10- 64-bit*
Colour
Product colour
Black- Grey
Power
DC input voltage
12 - 19 V
AC adapter output voltage
12-19 V
Power supply type
External AC adapter
Power supply
65 W
Technical details
BIOS type
EEPROM
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel® Virtualization Technology (Intel® VT)
VT-x
Intel Rapid Storage Technology
Yes
Intel® High Definition Audio (Intel® HD Audio)
Yes
Embedded options available
No
Trusted Platform Module (TPM)
No
Quick start guide
Yes
Processor cores
2
Cooling type
Active
Chassis type
UCFF
BIOS memory size
64 Mbit
ARK ID
95061
Internal I/O
Number of SATA connectors
2
Packaging data
Power cord included
Yes
AC adapter included
Yes
Indication
LED indicators
Yes
Management features
On/off switch
Yes
Features
Number of displays supported
3
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
115 mm
Depth
111 mm
Height
51 mm
Intel BOXNUC7I5BNK PC/workstation barebone i5-7260U 2.2 GHz UCFF Black
| Weight | 1.00 kgs |
