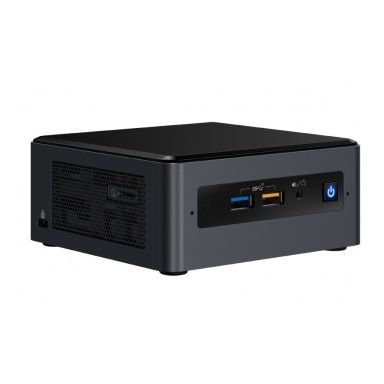

Intel NUC BOXNUC8I5BEH2 PC/workstation barebone i5-8259U 2.3 GHz UCFF Black BGA 1528
Out of Stock
|
Call For Price (0808 189 1246)
Motherboard
Motherboard form factor
UCFF
Processor socket
BGA 1528
Number of processors supported
1
Compatible processor series
Intel Core i5
Processor
Thermal Design Power (TDP)
28 W
L3 cache
6 MB
Built-in processor
Yes
Processor model
i5-8259U
Processor boost frequency
3.8 GHz
Processor threads
8
Processor frequency
2.3 GHz
Processor socket
BGA 1528
Processor lithography
14 nm
Processor cores
4
Processor family
Intel Core i5
Number of processors supported
1
Compatible processor series
Intel Core i5
Processor manufacturer
Intel
Processor codename
Coffee Lake
CPU configuration (max)
1
Processor cache
6 MB
Memory
Memory voltage
1.2 V
Memory slots type
SO-DIMM
Number of memory slots
2
Memory channels
Dual-channel
Memory bandwidth (max)
38.4 GB/s
ECC
No
Supported memory types
DDR4-SDRAM
Supported memory clock speeds
2400 MHz
Maximum internal memory
32 GB
Number of DIMM slots
2
Video
On-board graphics adapter
No
Graphics adapter family
Intel
Maximum graphics adapter memory
32768 MB
Storage
Supported storage drive types
HDD & SSD
Storage drive sizes supported
M.2-2.5
Number of storage drives supported
2
RAID levels
0-1
Compatible memory cards
MicroSDXC
Card reader integrated
Yes
SSD form factor
M.2
Graphics
Number of displays supported
3
On-board graphics adapter
No
Graphics adapter family
Intel
Maximum graphics adapter memory
32768 MB
Audio
Intel® High Definition Audio (Intel® HD Audio)
Yes
Audio output channels
7.1 channels
Network
Bluetooth version
5
Bluetooth
Yes
Ethernet LAN
Yes
Wi-Fi
Yes
LAN controller
Intel® I219-V
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Ports & interfaces
Consumer infrared headers
Yes
Combo headphone/mic port
Yes
Number of SATA III connectors
2
DC-in jack
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Internal USB 2.0 ports quantity
2
HDMI version
2.0a
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB ports quantity
6
Thunderbolt 3 ports quantity
1
M.2 card slot (storage)
2242/2280
Expansion slots
PCI Express slots version
3
PCI Express x4 slots
1
Number of M.2 (M) slots
1
Design
Motherboard form factor
UCFF
Product type
Mini PC barebone
Cable lock slot type
Kensington
Cable lock slot
Yes
ARK ID
126148
LED indicators
Yes
Cooling type
Active
Product colour
Black
Chassis type
UCFF
Product family
Intel NUC
Product series
Intel NUC kit
Product codename
Bean Canyon
Status
Launched
Performance
Motherboard form factor
UCFF
Intel Visual BIOS
Yes
Intel Express BIOS update
Yes
BIOS type
EEPROM
Number of displays supported
3
Trusted Platform Module (TPM)
No
Processor socket
BGA 1528
Operating system installed
No
Number of processors supported
1
Compatible processor series
Intel Core i5
BIOS memory size
64 Mbit
Audio output channels
7.1 channels
System Management BIOS (SMBIOS) version
2.5
Harmonized System (HS) code
8471500150
Export Control Classification Number (ECCN)
5A992C
Consumer infrared Rx sensor
Yes
Software
Operating system installed
No
Colour
Product colour
Black
Power
DC input voltage
12 - 19 V
Power supply type
External AC adapter
Power supply
90 W
Technical details
BIOS type
EEPROM
Intel® AES New Instructions (Intel® AES-NI)
Yes
Cable lock slot type
Kensington
Cable lock slot
Yes
Intel® Virtualization Technology (Intel® VT)
VT-d-VT-x
Intel Rapid Storage Technology
Yes
Intel® High Definition Audio (Intel® HD Audio)
Yes
Embedded options available
No
Trusted Platform Module (TPM)
No
RAID levels
0-1
Processor cores
4
Cooling type
Active
Chassis type
UCFF
BIOS memory size
64 Mbit
ARK ID
126148
Internal I/O
Number of SATA connectors
2
Packaging data
Power cord included
Yes
Indication
LED indicators
Yes
Features
Number of displays supported
3
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
117 mm
Depth
112 mm
Height
51 mm
Intel NUC BOXNUC8I5BEH2 PC/workstation barebone i5-8259U 2.3 GHz UCFF Black BGA 1528
| Weight | 1.00 kgs |
