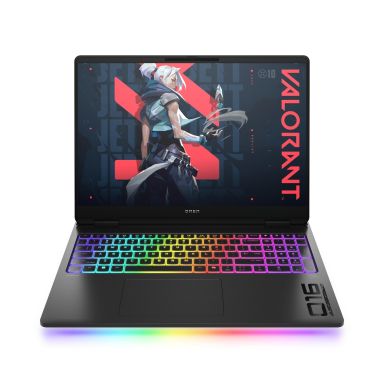

HP OMEN MAX Gaming 16-ah0004na Intel Core Ultra 7 255HX Laptop 40.6 cm (16") WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5070 Ti Windows 11 Home AI PC Black

Colour name

Shadow black

Product type

Laptop

Market positioning

Gaming

Form factor

Clamshell

Product colour

Black

Original brand name

HP

Country of origin

China

Introduction year

2025

Product design

Sandblasted and paint finish

HD type

WQXGA

Panel type

IPS

Display brightness

500 cd/m²

Display response rise/fall

3 ms

Display diagonal (metric)

40.6 cm

Touchscreen

No

Display resolution

2560 x 1600 pixels

Display diagonal

40.6 cm (16")

Anti-glare screen

Yes

Display bezel technology

Micro-Edge

Maximum refresh rate

240 Hz

sRGB coverage (typical)

100%

RGB colour space

sRGB

Colour gamut

100%

Native aspect ratio

16:10

Processor generation

Intel Core Ultra (Series 2)

Processor cache type

L3

Processor cache

30 MB

Processor model

255HX

Processor boost frequency

5.2 GHz

Processor cores

20

Processor threads

20

Motherboard chipset

Intel HM870

Processor manufacturer

Intel

Processor family

Intel Core Ultra 7

Processor base power

55 W

Maximum turbo power

160 W

Efficient-core base frequency

1.8 GHz

Performance-core base frequency

2.4 GHz

Efficient-core Max Turbo Frequency

4.5 GHz

Performance-core Max Turbo Frequency

5.2 GHz

Performance cores

8

Efficient cores

12

Neural processor unit (NPU)

Intel AI Boost

Sparsity support

Yes

Windows Studio effects support

Yes

AI software frameworks supported by NPU

DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

Total processor performance up to

33 TOPs

NPU performance up to

13 TOPs

GPU performance up to

8 TOPs

Memory form factor

SO-DIMM

Internal memory

32 GB

Memory layout (slots x size)

2 x 16 GB

Internal memory type

DDR5-SDRAM

Memory clock speed

5600 MHz

SSD form factor

M.2

Storage media

SSD

Optical drive type

No

Number of SSDs installed

1

SSD capacity

1 TB

SSD interface

PCI Express 5.0

Total storage capacity

1 TB

Total SSDs capacity

1 TB

NVMe

Yes

Discrete graphics card

Yes

Discrete graphics card memory

12 GB

NVIDIA G-SYNC

Yes

On-board graphics card family

Intel® Graphics

On-board graphics card

Yes

On-board graphics card model

Intel® Graphics

Discrete graphics card model

NVIDIA GeForce RTX 5070 Ti

Discrete graphics memory type

GDDR7

Discrete GPU manufacturer

NVIDIA

On-board GPU manufacturer

Intel

Number of microphones

2

Audio system

DTS:X Ultra

Built-in speaker(s)

Yes

Number of built-in speakers

2

Built-in microphone

Yes

Front camera

Yes

Front camera resolution

1920 x 1080 pixels

Privacy camera

Yes

Privacy type

Privacy shutter

Front camera HD type

Full HD

Infrared (IR) camera

Yes

Optical drive type

No

Mobile network connection

No

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

WLAN controller model

Intel Wi-Fi 7 BE200

Wi-Fi

Yes

Wi-Fi standards

Wi-Fi 7 (802.11be)

Ethernet LAN

Yes

Ethernet LAN data rates

2500,10,100,1000 Mbit/s

Bluetooth

Yes

Bluetooth version

5.4

Antenna type

2x2

WLAN controller manufacturer

Intel

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB Type-C DisplayPort Alternate Mode

Yes

USB Sleep-and-Charge ports

2

USB Sleep-and-Charge

Yes

USB 2.0 ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

Ethernet LAN (RJ-45) ports

1

Microphone in

Yes

Combo headphone/mic port

Yes

USB Power Delivery (USB PD)

Yes

Thunderbolt 4 ports quantity

2

USB4 Gen 3x2 ports quantity

2

Intel® Thunderbolt 4

Yes

Motherboard chipset

Intel HM870

Temperature sensor

Yes

Pointing device

Touchpad

Numeric keypad

Yes

Full-size keyboard

Yes

Keyboard backlit

Yes

Keyboard backlit colour

RGB

Keyboard backlit zone

Per-key RGB

Keyboard colour name

Shadow black

Trial software

100 GB Dropbox storage for 3 months

Pre-installed software

Otter.ai, 1 month trial for new Microsoft 365 customers, McAfee Online Protection 30-day trial; 1-month Adobe free trial offer; PC Game Pass 3-month trial

Operating system installed

Windows 11 Home

Market positioning

Gaming

Intel® Turbo Boost Technology

Yes

Form factor

Clamshell

Product colour

Black

Discrete graphics card memory

12 GB

Sustainable technologies and materials

Ocean-bound plastic in bezel; Keyboard keycaps and scissors contain post-consumer recycled plastic; Recycled metal in cover, base and hinge cap(s)

Sustainability certificates

EPEAT Gold

General Product Safety Regulation (GPSR) URL

https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true ; HP REG 23010, 08028 Barcelona, Spain ; reg@hp.com

HP GTIN (EAN/UPC)

199251447891

Intel® Turbo Boost Technology

Yes

HP Security tools

Camera privacy shutter; Trusted Platform Module (Firmware TPM) support

HP Software provided

HP Support Assistant; HP Connection Optimizer; OMEN Gaming Hub

HP Audio Boost

Yes

HP speaker type

HP Dual Speakers

HP Imagepad

Yes

HP front camera

HP TrueVision FHD IR

HP segment

Home

HP Artificial Intelligence

AI PC

HP GTIN (EAN/UPC)

199251447891

HP Security tools

Camera privacy shutter; Trusted Platform Module (Firmware TPM) support

HP Software provided

HP Support Assistant; HP Connection Optimizer; OMEN Gaming Hub

HP Audio Boost

Yes

HP speaker type

HP Dual Speakers

HP Imagepad

Yes

HP front camera

HP TrueVision FHD IR

Battery technology

Lithium Polymer (LiPo)

Number of battery cells

6

Battery capacity

83 Wh

Fast charging

Yes

Fast charging time (50%)

30 min

AC adapter power

330 W

AC adapter frequency

50 - 60 Hz

AC adapter input voltage

100 - 240 V

USB Power Delivery (USB PD)

Yes

USB Type-C charging port

Yes

Password protection

Yes

Trusted Platform Module (TPM)

Yes

Password protection type

BIOS, Power on

Sustainable technologies and materials

Ocean-bound plastic in bezel; Keyboard keycaps and scissors contain post-consumer recycled plastic; Recycled metal in cover, base and hinge cap(s)

Sustainability certificates

EPEAT Gold

Total carbon footprint (kg of CO2e)

140

Width

356.5 mm

Depth

269 mm

Height (front)

2.29 cm

Height (rear)

2.48 cm

Weight

2.68 kg

Package weight

4.74 kg

Package width

94 mm

Package height

332 mm

Package depth

428 mm

Country of origin

China

Country of origin

China

Total carbon footprint (kg of CO2e)

140

Total carbon emissions, w/o use phase (kg of CO2e)

20

Carbon emissions, manufacturing (kg of CO2e)

119

Carbon emissions, logistics (kg of CO2e)

2

Carbon emissions, end-of-life (kg of CO2e)

1

Keyboard included

Yes

Harmonized System (HS) code

8471300000

WLAN controller model

Intel Wi-Fi 7 BE200

On-board graphics card

Yes

Audio system

DTS:X Ultra

Display diagonal (metric)

40.6 cm

UNSPSC-code

43211503

Anti-glare screen

Yes

Country of origin

China

Harmonized System (HS) code

8471300000

Manufacturer warranty

1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
