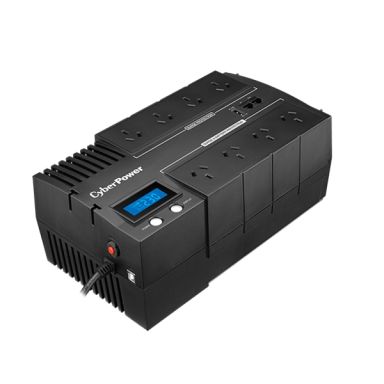

CyberPower BR1200ELCD uninterruptible power supply (UPS) Line-Interactive 1200 VA 720 W 8 AC outlet(s)
In Stock
|
Call For Price (0808 189 1246)
Power
Output power
720 W
Input operation voltage (min)
170 V
Input operation voltage (max)
290 V
Surge energy rating
125 J
Output power capacity
1.2 kVA
Charging current
1 A
Ports & interfaces
Cable length
1.5 m
USB port
Yes
Serial interface
No
AC outlets quantity
8 AC outlet(s)
USB 2.0 ports quantity
1
Modem (RJ-11) ports
2
Ethernet LAN (RJ-45) ports
2
Performance
Audible alarm modes
Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology
Line-Interactive
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
Response time
4 ms
LED indicators
Yes
EMI/RFI noise filtering
Yes
Surge protection
Yes
Surge protection features
Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone
Power protection features
Overload
Noise level
40 dB
Audible alarm(s)
Yes
Features
Output frequency
50/60 Hz
Audible alarm modes
Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology
Line-Interactive
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
Response time
4 ms
Output power
720 W
Input operation voltage (min)
170 V
Input operation voltage (max)
290 V
Surge energy rating
125 J
EMI/RFI noise filtering
Yes
Surge protection
Yes
Surge protection features
Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone
Power protection features
Overload
Noise level
40 dB
Audible alarm(s)
Yes
Output power capacity
1.2 kVA
Input frequency
50/60 Hz
Charging current
1 A
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
8 h
Typical backup time at half load
9 min
Typical backup time at full load
2 min
Cold start
Yes
Charging current
1 A
Design
Form factor
Compact
LED indicators
Yes
Product colour
Black
Certification
CE , RCM
Cable length
1.5 m
Housing material
Plastic
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 90%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 3000 m
Technical details
Output frequency
50/60 Hz
Compliance certificates
RoHS
Weight & dimensions
Weight
8.2 kg
Width
166 mm
Height
118 mm
Depth
288 mm
Packaging data
Bundled software
PowerPanel® Personal Edition
Certificates
Certification
CE , RCM
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Bundled software
PowerPanel® Personal Edition
CyberPower BR1200ELCD uninterruptible power supply (UPS) Line-Interactive 1200 VA 720 W 8 AC outlet(s)
| Length | 28.80 cm |
| Width | 16.60 cm |
| Height | 11.80 cm |
| Weight | 8.50 kgs |
