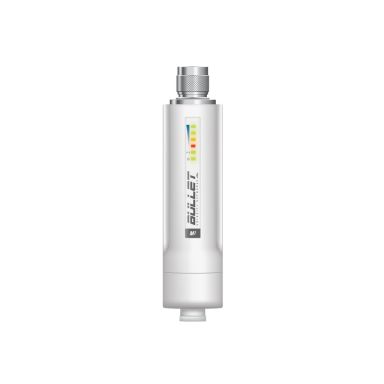

Ubiquiti Networks BM2HP 100 Mbit/s White Power over Ethernet (PoE)
In Stock
|
Call For Price
(0808 189 1246)
Data transmission
Ethernet LAN data rates
10,100 Mbit/s
Maximum data transfer rate
100 Mbit/s
Performance
2.4 GHz
Yes
Transmitting power
28 dBmW
Frequency band
2.4 GHz
Receiver sensitivity
-96dBm +/-2dB
Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Maximum outdoor range
50000 m
Ethernet LAN data rates
10,100 Mbit/s
Certification
ETSI300-019-1.4, FCC Part 15.247, IC RS210, CE, RoHS
Maximum data transfer rate
100 Mbit/s
Internal memory
32 MB
Flash memory
8 MB
Built-in processor
Yes
Processor model
Qualcomm Atheros
Processor frequency
400 MHz
Processor architecture
MIPS 24Kc
Wireless LAN features
Frequency band
2.4 GHz
Maximum outdoor range
50000 m
Network
Internal
No
Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Certificates
Certification
ETSI300-019-1.4, FCC Part 15.247, IC RS210, CE, RoHS
Memory
Internal memory
32 MB
Flash memory
8 MB
Features
2.4 GHz
Yes
Transmitting power
28 dBmW
Frequency band
2.4 GHz
Receiver sensitivity
-96dBm +/-2dB
Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Maximum outdoor range
50000 m
Ethernet LAN data rates
10,100 Mbit/s
Maximum data transfer rate
100 Mbit/s
Internal memory
32 MB
Flash memory
8 MB
Built-in processor
Yes
Processor model
Qualcomm Atheros
Processor frequency
400 MHz
Processor architecture
MIPS 24Kc
Protocols
Supported network protocols
TCP/IP
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Power
Power consumption (max)
7 W
Power over Ethernet (PoE)
Yes
Design
Housing material
Plastic
Product colour
White
Internal
No
LED indicators
Yes
Certification
ETSI300-019-1.4, FCC Part 15.247, IC RS210, CE, RoHS
Antenna
Antenna connector type
N-type
Antenna features
Integrated antenna
Technical details
Transmitting power
28 dBmW
Receiver sensitivity
-96dBm +/-2dB
Processor
Built-in processor
Yes
Indication
LED indicators
Yes
Weight & dimensions
Width
37 mm
Depth
152 mm
Weight
180 g
Height
31 mm
Operational conditions
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-20 - 70 °C
Ubiquiti Networks BM2HP 100 Mbit/s White Power over Ethernet (PoE)
