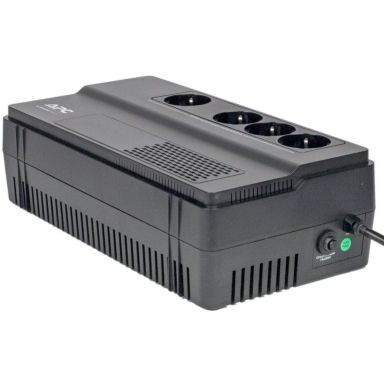

APC BV500I-GR uninterruptible power supply (UPS) Line-Interactive 500 VA 300 W 4 AC outlet(s)
In Stock
|
Call For Price
(0808 189 1246)
Power
Output power
300 W
Input operation voltage (min)
170 V
Input operation voltage (max)
280 V
Surge energy rating
156 J
Output power capacity
0.5 kVA
Ports & interfaces
Cable length
1.52 m
AC outlets quantity
4 AC outlet(s)
AC outlet types
Type F
Performance
UPS topology
Line-Interactive
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
Number of output phases
1
Number of input phases
1
LED indicators
Yes
Surge protection
Yes
Noise level
40 dB
Audible alarm(s)
Yes
Transfer time (Line Mode to Battery Mode)
6 ms
Features
Output frequency
50/60 Hz
UPS topology
Line-Interactive
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
Number of output phases
1
Number of input phases
1
Output power
300 W
Input operation voltage (min)
170 V
Input operation voltage (max)
280 V
Surge energy rating
156 J
Surge protection
Yes
Noise level
40 dB
Audible alarm(s)
Yes
Output power capacity
0.5 kVA
Transfer time (Line Mode to Battery Mode)
6 ms
Input frequency
50/60 Hz
Battery
Battery voltage
12 V
Battery capacity
4.5 Ah
Battery recharge time
8 h
Cold start
Yes
Design
Form factor
Compact
LED indicators
Yes
Product colour
Black
Certification
CE REACH
Cable length
1.52 m
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 1968.3 m
Technical details
Output frequency
50/60 Hz
Sustainability certificates
RoHS
Harmonized System (HS) code
85078000
Weight & dimensions
Package width
373 mm
Package depth
143 mm
Package height
237 mm
Weight
3.9 kg
Width
160 mm
Package weight
4.2 kg
Height
92 mm
Depth
305 mm
APC BV500I-GR uninterruptible power supply (UPS) Line-Interactive 500 VA 300 W 4 AC outlet(s)
| Length | 30.50 cm |
| Width | 16.00 cm |
| Height | 9.20 cm |
| Weight | 3.900000 kgs |
