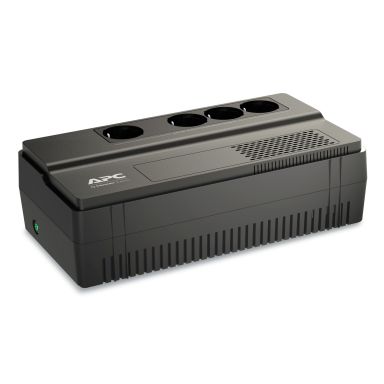

APC BV800I-GR uninterruptible power supply (UPS) Line-Interactive 800 VA 450 W 4 AC outlet(s)
In Stock
|
Call For Price (0808 189 1246)
Power
Output power
450 W
Input operation voltage (min)
170 V
Input operation voltage (max)
280 V
Surge energy rating
156 J
Output power capacity
0.8 kVA
Ports & interfaces
Cable length
1.52 m
AC outlets quantity
4 AC outlet(s)
AC outlet types
Type F
Performance
Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
UPS topology
Line-Interactive
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
Number of output phases
1
Number of input phases
1
LED indicators
Yes
Surge protection
Yes
Noise level
40 dB
Audible alarm(s)
Yes
Transfer time (Line Mode to Battery Mode)
6 ms
Features
Output frequency
50/60 Hz
Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
UPS topology
Line-Interactive
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
Number of output phases
1
Number of input phases
1
Output power
450 W
Input operation voltage (min)
170 V
Input operation voltage (max)
280 V
Surge energy rating
156 J
Surge protection
Yes
Noise level
40 dB
Audible alarm(s)
Yes
Output power capacity
0.8 kVA
Transfer time (Line Mode to Battery Mode)
6 ms
Input frequency
50/60 Hz
Battery
Battery voltage
12 V
Battery capacity
7 Ah
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
8 h
Cold start
Yes
Design
Form factor
Compact
LED indicators
Yes
Product colour
Black
Certification
CE REACH
Cable length
1.52 m
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 1968.3 m
Technical details
Output frequency
50/60 Hz
Harmonized System (HS) code
85078000
Compliance certificates
RoHS
Weight & dimensions
Package width
373 mm
Package depth
143 mm
Package height
237 mm
Weight
5.3 kg
Width
160 mm
Package weight
5.6 kg
Height
92 mm
Depth
305 mm
Packaging data
Package width
373 mm
Package depth
143 mm
Package height
237 mm
Package weight
5.6 kg
Logistics data
Harmonized System (HS) code
85078000
Certificates
Certification
CE REACH
Other features
Nominal output voltage
230 V
APC BV800I-GR uninterruptible power supply (UPS) Line-Interactive 800 VA 450 W 4 AC outlet(s)
| Length | 14.3 cm |
| Width | 37.3 cm |
| Height | 23.7 cm |
| Weight | 5.60 kgs |
