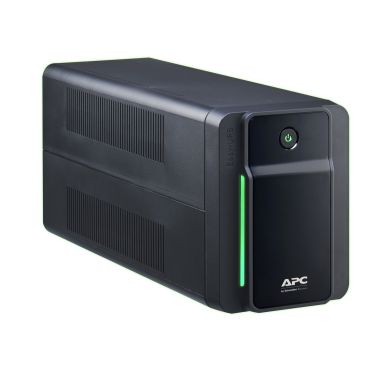

APC BVX700LI uninterruptible power supply (UPS) Line-Interactive 0.7 kVA 360 W 4 AC outlet(s)
In Stock
|
$81.33
$97.60 (Inc. VAT)
Power
Output voltage regulation
10%
Output frequency regulation
0.5 Hz
Input power factor
0.51
Output power
360 W
Input operation voltage (min)
170 V
Input operation voltage (max)
280 V
Output operation voltage (min)
230 V
Output operation voltage (max)
230 V
Surge energy rating
273 J
Output power capacity
0.7 kVA
Performance
Audible alarm modes
Alarm when on battery, Battery replacement, Low battery alarm, Overload alarm
UPS topology
Line-Interactive
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
Response time
6 ms
LED indicators
Yes
Surge protection
Yes
Noise level
40 dB
Audible alarm(s)
Yes
Features
Output frequency
50/60 Hz
Audible alarm modes
Alarm when on battery, Battery replacement, Low battery alarm, Overload alarm
UPS topology
Line-Interactive
Waveform
Sine
Output voltage regulation
10%
Output frequency regulation
0.5 Hz
Automatic Voltage Regulation (AVR)
Yes
Input power factor
0.51
Response time
6 ms
Output power
360 W
Input operation voltage (min)
170 V
Input operation voltage (max)
280 V
Output operation voltage (min)
230 V
Output operation voltage (max)
230 V
Surge energy rating
273 J
Surge protection
Yes
Noise level
40 dB
Audible alarm(s)
Yes
Output power capacity
0.7 kVA
Input frequency
50/60 Hz
Ports & interfaces
AC outlets quantity
4 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
Battery
Battery life (max)
2 year(s)
Battery voltage
12 V
Battery capacity
7 Ah
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
8 h
Cold start
Yes
Design
International Protection (IP) code
IP20
Form factor
Compact
LED indicators
Yes
Product colour
Black
Certification
CB, CE, EN/IEC 62040-1, EN/IEC 62040-2
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 3000 m
Technical details
Output frequency
50/60 Hz
Harmonized System (HS) code
85078000
Weight & dimensions
Package width
222 mm
Package depth
346 mm
Package height
142 mm
Weight
4.5 kg
Width
31 mm
Package weight
4.5 kg
Height
98 mm
Depth
138 mm
Packaging data
Cables included
Input power cable
Manual
Yes
Package width
222 mm
Package depth
346 mm
Package height
142 mm
Package weight
4.5 kg
Logistics data
Harmonized System (HS) code
85078000
Certificates
Certification
CB, CE, EN/IEC 62040-1, EN/IEC 62040-2
Packaging content
Cables included
Input power cable
Manual
Yes
APC BVX700LI uninterruptible power supply (UPS) Line-Interactive 0.7 kVA 360 W 4 AC outlet(s)
