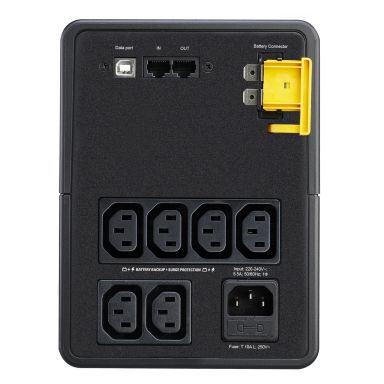

APC BX1200MI uninterruptible power supply (UPS) Line-Interactive 1.2 kVA 650 W 6 AC outlet(s)
In Stock
|
$139.29
$167.15 (Inc. VAT)
Power
Output voltage regulation
10%
Output frequency regulation
0.5 Hz
Input power factor
0.54
Output power
650 W
Input operation voltage (min)
140 V
Input operation voltage (max)
300 V
Output operation voltage (min)
230 V
Output operation voltage (max)
230 V
Surge energy rating
273 J
Output power capacity
1.2 kVA
Ports & interfaces
Cable length
1.2 m
USB port
Yes
AC outlets quantity
6 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
2
USB port type
USB Type-B
Performance
Audible alarm modes
Low battery alarm
UPS topology
Line-Interactive
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
Response time
6 ms
LED indicators
Yes
Noise level
40 dB
Audible alarm(s)
Yes
Features
Output frequency
50/60 Hz
Audible alarm modes
Low battery alarm
UPS topology
Line-Interactive
Waveform
Sine
Output voltage regulation
10%
Output frequency regulation
0.5 Hz
Automatic Voltage Regulation (AVR)
Yes
Input power factor
0.54
Response time
6 ms
Output power
650 W
Input operation voltage (min)
140 V
Input operation voltage (max)
300 V
Output operation voltage (min)
230 V
Output operation voltage (max)
230 V
Surge energy rating
273 J
Noise level
40 dB
Audible alarm(s)
Yes
Output power capacity
1.2 kVA
Input frequency
50/60 Hz
Battery
Battery life (max)
2 year(s)
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
8 h
Typical backup time at half load
5 min
Typical backup time at full load
1 min
Design
International Protection (IP) code
IP20
Form factor
Compact
LED indicators
Yes
Product colour
Black
Certification
CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
Cable length
1.2 m
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Technical details
Output frequency
50/60 Hz
Sustainability certificates
RoHS
Harmonized System (HS) code
85078000
Compliance certificates
RoHS
Weight & dimensions
Package width
235 mm
Package depth
495 mm
Package height
297 mm
Weight
7.6 kg
Width
140 mm
Package weight
8.6 kg
Height
190 mm
Depth
390 mm
Packaging data
Cables included
Input power cable
Manual
Yes
Package width
235 mm
Package depth
495 mm
Package height
297 mm
Package weight
8.6 kg
Logistics data
Harmonized System (HS) code
85078000
Certificates
Certification
CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
Packaging content
Cables included
Input power cable
Manual
Yes
APC BX1200MI uninterruptible power supply (UPS) Line-Interactive 1.2 kVA 650 W 6 AC outlet(s)
