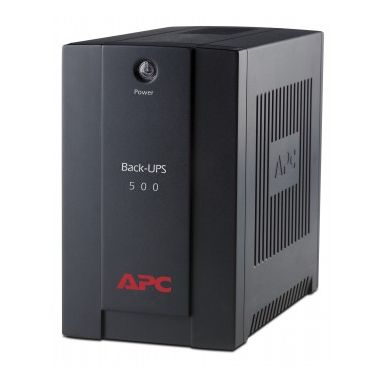

APC Back-UPS uninterruptible power supply UPS
In Stock
|
Call For Price
(0808 189 1246)
Power
Output frequency regulation
50 Hz
Output power
300 W
Input operation voltage (min)
160 V
Input operation voltage (max)
280 V
Surge energy rating
273 J
Maximum current
2 A
Efficiency
98.7%
Output power capacity
0.5 kVA
Ports & interfaces
Cable length
1.83 m
AC outlets quantity
3 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
Number of output IEC jumpers
1
Performance
Hold time (min)
6 ms
Hold time (max)
10 ms
Audible alarm modes
Low battery alarm- Overload alarm
UPS topology
Line-Interactive
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
LED indicators
Battery replacement
Surge protection
Yes
Noise level
45 dB
Audible alarm(s)
Yes
Features
Hold time (min)
6 ms
Hold time (max)
10 ms
Audible alarm modes
Low battery alarm- Overload alarm
UPS topology
Line-Interactive
Waveform
Sine
Output frequency regulation
50 Hz
Automatic Voltage Regulation (AVR)
Yes
Output power
300 W
Input operation voltage (min)
160 V
Input operation voltage (max)
280 V
Surge energy rating
273 J
Maximum current
2 A
Efficiency
98.7%
Surge protection
Yes
Noise level
45 dB
Audible alarm(s)
Yes
Output power capacity
0.5 kVA
Input frequency
45/65 Hz
Battery
Battery capacity
47 VAh
Battery voltage
12 V
Battery capacity
7.2 Ah
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at half load
7.6 min
Typical backup time at full load
1.3 min
Automatic battery test
Yes
Design
Form factor
Tower
LED indicators
Battery replacement
Product colour
Black
Certification
CE- REACH- PEP- EOLI
Cable length
1.83 m
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Technical details
Sustainability certificates
RoHS- ENERGY STAR
Weight & dimensions
Weight
5.2 kg
Width
115 mm
Height
185 mm
Depth
213 mm
Package width
190 mm
Package depth
291 mm
Package height
257 mm
Package weight
5.68 kg
Packaging data
Manual
Yes
Package width
190 mm
Package depth
291 mm
Package height
257 mm
Package weight
5.68 kg
Logistics data
Products per master (outer) case
2 pc(s)
Products per pallet
60 pc(s)
Certificates
Certification
CE- REACH- PEP- EOLI
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Manual
Yes
APC Back-UPS uninterruptible power supply UPS
| Length | 21.30 cm |
| Width | 11.50 cm |
| Height | 18.50 cm |
| Weight | 5.200000 kgs |
