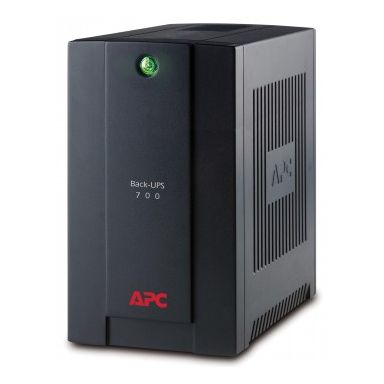

APC Back-UPS uninterruptible power supply (UPS) Line-Interactive 700 VA 390 W 4 AC outlet(s)
In Stock
|
Call For Price
(0808 189 1246)
Power
Output frequency regulation
50/60 Hz
Output power
390 W
Input operation voltage (min)
140 V
Input operation voltage (max)
300 V
Surge energy rating
273 J
Efficiency
96.6%
Output power capacity
0.7 kVA
Ports & interfaces
Cable length
1.22 m
USB port
Yes
AC outlets quantity
4 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
Number of output IEC jumpers
1
Performance
Hold time (max)
4 ms
Audible alarm modes
Low battery alarm- Overload alarm
UPS topology
Line-Interactive
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
LED indicators
Battery replacement
Surge protection
Yes
Surge protection features
Digital Subscriber Line (DSL)- Fax- Modem
Noise level
45 dB
Audible alarm(s)
Yes
Features
Hold time (max)
4 ms
Audible alarm modes
Low battery alarm- Overload alarm
UPS topology
Line-Interactive
Waveform
Sine
Output frequency regulation
50/60 Hz
Automatic Voltage Regulation (AVR)
Yes
Output power
390 W
Input operation voltage (min)
140 V
Input operation voltage (max)
300 V
Surge energy rating
273 J
Efficiency
96.6%
Surge protection
Yes
Surge protection features
Digital Subscriber Line (DSL)- Fax- Modem
Noise level
45 dB
Audible alarm(s)
Yes
Output power capacity
0.7 kVA
Input frequency
50/60 Hz
Battery
Battery life (max)
5 year(s)
Battery capacity
81 VAh
Number of batteries supported
1
Battery voltage
12 V
Battery capacity
7.2 Ah
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
6 h
Typical backup time at half load
8.7 min
Typical backup time at full load
1.3 min
Automatic battery test
Yes
Design
Form factor
Tower
LED indicators
Battery replacement
Product colour
Black
Certification
REACH
Cable length
1.22 m
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 9000 m
Technical details
Sustainability certificates
RoHS
Weight & dimensions
Weight
6 kg
Width
115 mm
Height
200 mm
Depth
256 mm
Package width
295 mm
Package depth
340 mm
Package height
275 mm
Package weight
6.5 kg
Packaging data
Manual
Yes
Package width
295 mm
Package depth
340 mm
Package height
275 mm
Bundled software
PowerChute Personal Edition
Package weight
6.5 kg
Certificates
Certification
REACH
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Manual
Yes
Bundled software
PowerChute Personal Edition
APC Back-UPS uninterruptible power supply (UPS) Line-Interactive 700 VA 390 W 4 AC outlet(s)
| Length | 25.60 cm |
| Width | 11.50 cm |
| Height | 20.00 cm |
| Weight | 6.000000 kgs |
