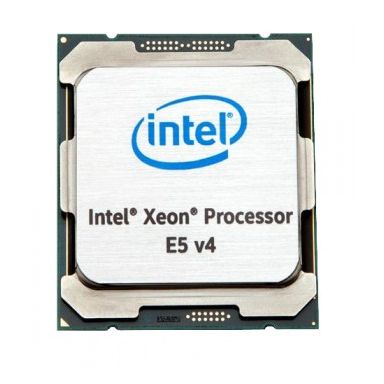

Intel Xeon E5-2680V4 processor 2.4 GHz Box 35 MB Smart Cache

Processor base frequency

2.4 GHz

Processor manufacturer

Intel

Cooler included

Yes

Processor codename

Broadwell

Memory bandwidth supported by processor (max)

76.8 GB/s

Thermal Design Power (TDP)

120 W

Processor cache

35 MB

Processor ARK ID

91754

Processor model

E5-2680V4

Processor threads

28

System bus rate

9.6 GT/s

Processor operating modes

64-bit

Processor boost frequency

3.3 GHz

Number of QPI links

2

Bus type

QPI

Component for

Server/workstation

Processor lithography

14 nm

Processor family

Intel® Xeon® E5 v4

Processor cores

14

Box

Yes

Processor socket

LGA 2011-v3

Processor cache type

Smart Cache

Maximum internal memory supported by processor

1536 GB

Memory types supported by processor

DDR4-SDRAM

Memory clock speeds supported by processor

1600-1866-2133-2400 MHz

Memory bandwidth supported by processor (max)

76.8 GB/s

Supported memory types

DDR4-SDRAM

Memory channels

Quad-channel

ECC

Yes

Discrete graphics card

No

On-board graphics card model

Not available

On-board graphics card

No

Discrete graphics card model

Not available

Thermal Design Power (TDP)

120 W

Intel TSX-NI

Yes

Intel® Secure Key

Yes

Thermal Monitoring Technologies

Yes

Intel® Turbo Boost Technology

2.0

Intel Trusted Execution Technology

Yes

Intel® Identity Protection Technology (Intel® IPT)

No

Intel® Hyper Threading Technology (Intel® HT Technology)

Yes

Intel Flex Memory Access

No

Intel® AES New Instructions (Intel® AES-NI)

Yes

Idle States

Yes

Execute Disable Bit

Yes

Enhanced Intel SpeedStep Technology

Yes

PCI Express slots version

3.0

PCI Express configurations

1x16- 1x4- 1x8

Supported instruction sets

AVX 2.0

Scalability

2S

Physical Address Extension (PAE)

Yes

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Enhanced Halt State

Yes

Intel Demand Based Switching

Yes

Embedded options available

Yes

CPU configuration (max)

2

Product type

Processor

Processor cache

35840 KB

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel 64

Yes

Thermal Design Power (TDP)

120 W

Supported memory types

DDR4-SDRAM

Status

Launched

Physical Address Extension (PAE)

46 bit

Market segment

Server

Launch date

Q1'16

Intel Virtualization Technology (VT-x)

Yes

Intel Secure Key Technology version

1.00

Intel Identity Protection Technology version

0.00

Processor cache type

Smart Cache

Bus type units

GT/s

Bus bandwidth

9.6

Intel TSX-NI version

1.00

Processor brand name

Intel Xeon

Last change

63903513

Product family

Intel Xeon Processors

Bus speed

9.6 GT/s

Servicing status

End of Servicing Updates

End of servicing updates date

Thursday- June 30- 2022

Maximum number of PCI Express lanes

40

Thermal Design Power (TDP)

120 W

Processor package size

45mm x 52.5mm

Processor ARK ID

91754

Thermal Monitoring Technologies

Yes

Idle States

Yes

Execute Disable Bit

Yes

PCI Express slots version

3.0

PCI Express configurations

1x16- 1x4- 1x8

Supported instruction sets

AVX 2.0

Scalability

2S

Physical Address Extension (PAE)

Yes

Embedded options available

Yes

CPU configuration (max)

2

Physical Address Extension (PAE)

46 bit

Market segment

Server

Harmonized System (HS) code

8542310001

Export Control Classification Number (ECCN)

5A992C

Commodity Classification Automated Tracking System (CCATS)

G077159

PCI Express CEM revision

3.0

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel 64

Yes

Conflict-Free processor

Yes

Intel® OS Guard

Yes

Intel TSX-NI

Yes

Intel® Secure Key

Yes

Intel® Turbo Boost Technology

2.0

Intel Trusted Execution Technology

Yes

Intel® Identity Protection Technology (Intel® IPT)

No

Intel® Hyper Threading Technology (Intel® HT Technology)

Yes

Intel Flex Memory Access

No

Intel® AES New Instructions (Intel® AES-NI)

Yes

Enhanced Intel SpeedStep Technology

Yes

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Enhanced Halt State

Yes

Intel Demand Based Switching

Yes

Intel Virtualization Technology (VT-x)

Yes

Intel Secure Key Technology version

1.00

Intel Identity Protection Technology version

0.00

Intel TSX-NI version

1.00

Intel® vPro™ Platform Eligibility

Yes

Intel® Turbo Boost Technology 2.0 frequency

3.3 GHz

Intel® Transactional Synchronization Extensions

Yes

Tcase

86 °C

Package width

116 mm

Package depth

101 mm

Package height

44 mm

Package weight

99.5 g

Package type

Retail box

Harmonized System (HS) code

8542310001

Processor package size

45mm x 52.5mm

Package width

116 mm

Package depth

101 mm

Package height

44 mm

Package weight

99.5 g

Maximum internal memory

1572864 MB

Maximum internal memory

1500 GB

CPU configuration (max)

2
