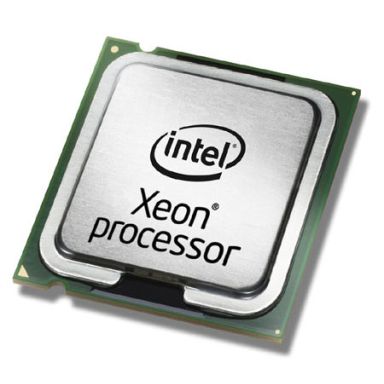

Intel Xeon E5-2683 v4 processor 2.1 GHz 40 MB Smart Cache Box
In Stock
|
$937.55
$1125.06 (Inc. VAT)
Processor
Processor base frequency
2.1 GHz
Processor manufacturer
Intel
Processor codename
Broadwell
Memory bandwidth supported by processor (max)
76.8 GB/s
Thermal Design Power (TDP)
120 W
Processor cache
40 MB
Processor ARK ID
91766
Processor model
E5-2683V4
Processor threads
32
System bus rate
9.6 GT/s
Processor operating modes
64-bit
VID Voltage Range
0 - 0 V
Processor boost frequency
3 GHz
Number of QPI links
2
Bus type
QPI
Component for
Server/workstation
Processor lithography
14 nm
Processor family
Intel® Xeon® E5 v4
Processor cores
16
Box
Yes
Processor socket
LGA 2011-v3
Processor series
Intel Xeon E5-2600 v4
Processor cache type
Smart Cache
Memory
Maximum internal memory supported by processor
1.54 TB
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
1600,1866,2133,2400 MHz
Memory bandwidth supported by processor (max)
76.8 GB/s
Memory channels
Quad-channel
ECC
Yes
Graphics
Discrete graphics card
No
On-board graphics card model
Not available
On-board graphics card
No
Discrete graphics card model
Not available
Power
Thermal Design Power (TDP)
120 W
VID Voltage Range
0 - 0 V
Technical details
Intel TSX-NI
Yes
Intel® Secure Key
Yes
Thermal Monitoring Technologies
Yes
Intel® Turbo Boost Technology
2.0
Intel Trusted Execution Technology
Yes
Intel® Smart Cache
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel Flex Memory Access
No
Intel® AES New Instructions (Intel® AES-NI)
Yes
Idle States
Yes
Execute Disable Bit
Yes
Enhanced Intel SpeedStep Technology
Yes
PCI Express slots version
3.0
PCI Express configurations
1x16, 1x4, 1x8
Scalability
2S
Physical Address Extension (PAE)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Demand Based Switching
Yes
Embedded options available
No
CPU configuration (max)
2
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel 64
Yes
Thermal Design Power (TDP)
120 W
Processor series
Intel Xeon E5-2600 v4
Physical Address Extension (PAE)
46 bit
Market segment
Server
Intel Virtualization Technology (VT-x)
Yes
Processor cache type
Smart Cache
Features
Maximum number of PCI Express lanes
40
Thermal Design Power (TDP)
120 W
Processor package size
45 x 52.5 mm
Processor ARK ID
91766
Thermal Monitoring Technologies
Yes
Idle States
Yes
Execute Disable Bit
Yes
PCI Express slots version
3.0
PCI Express configurations
1x16, 1x4, 1x8
Scalability
2S
Physical Address Extension (PAE)
Yes
Embedded options available
No
CPU configuration (max)
2
Physical Address Extension (PAE)
46 bit
Market segment
Server
Harmonized System (HS) code
85423119
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel 64
Yes
Conflict-Free processor
Yes
Intel® OS Guard
Yes
Intel TSX-NI
Yes
Intel® Secure Key
Yes
Intel® Turbo Boost Technology
2.0
Intel Trusted Execution Technology
Yes
Intel® Smart Cache
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel Flex Memory Access
No
Intel® AES New Instructions (Intel® AES-NI)
Yes
Enhanced Intel SpeedStep Technology
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Demand Based Switching
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel® vPro Platform Eligibility
Yes
Operational conditions
Tcase
84 °C
Packaging data
Package width
116 mm
Package depth
101 mm
Package height
44 mm
Package weight
99.5 g
Logistics data
Harmonized System (HS) code
85423119
Weight & dimensions
Processor package size
45 x 52.5 mm
Package width
116 mm
Package depth
101 mm
Package height
44 mm
Package weight
99.5 g
Other features
CPU configuration (max)
2
Intel Xeon E5-2683 v4 processor 2.1 GHz 40 MB Smart Cache Box
