In Stock
|
$717.38
$860.86 (Inc. VAT)
Processor
Processor generation
Intel Core i9-14xxx
Processor manufacturer
Intel
Cooler included
No
Processor codename
Raptor Lake
Memory bandwidth supported by processor (max)
89.6 GB/s
Processor cache
36 MB
Processor ARK ID
237504
Processor model
i9-14900KS
Processor threads
32
Processor operating modes
64-bit
Processor boost frequency
6.2 GHz
Stepping
B0
Processor family
Intel® Core i9
Processor cores
24
Box
Yes
Processor socket
LGA 1700
Processor cache type
Smart Cache
Performance cores
8
Efficient cores
16
Performance-core boost frequency
5.7 GHz
Performance-core base frequency
3.2 GHz
Efficient-core boost frequency
4.5 GHz
Efficient-core base frequency
2.4 GHz
Processor base power
150 W
Maximum turbo power
253 W
Maximum number of DMI lanes
8
Memory
Maximum internal memory supported by processor
192 GB
Memory types supported by processor
DDR4-SDRAM, DDR5-SDRAM
Memory bandwidth supported by processor (max)
89.6 GB/s
Memory channels
Dual-channel
Memory bandwidth (max)
89.6 GB/s
ECC
Yes
Non-ECC
Yes
Graphics
Discrete graphics card
No
On-board graphics card outputs supported
Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
On-board graphics card maximum resolution (DisplayPort)
7680 x 4320 pixels
Number of execution units
32
On-board graphics card ID
0xA780
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)
5120 x 3200 pixels
On-board graphics card refresh rate at maximum resolution (HDMI)
60 Hz
On-board graphics card refresh rate at maximum resolution (DisplayPort)
60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)
120 Hz
Number of displays supported (on-board graphics)
4
On-board graphics card maximum resolution (HDMI)
4096 x 2160 pixels
On-board graphics card DirectX version
12.0
On-board graphics card OpenGL version
4.5
On-board graphics card model
Intel UHD Graphics 770
On-board graphics card
Yes
On-board graphics card dynamic frequency (max)
1650 MHz
On-board graphics card base frequency
300 MHz
Discrete graphics card model
Not available
Multi-Format Codec Engines
2
Technical details
Intel® Active Management Technology (Intel® AMT)
Yes
Intel® Secure Key
Yes
Thermal Monitoring Technologies
Yes
Intel® Turbo Boost Technology
2.0
Intel Trusted Execution Technology
Yes
Intel® Quick Sync Video Technology
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Idle States
Yes
Execute Disable Bit
Yes
Enhanced Intel SpeedStep Technology
Yes
PCI Express slots version
4.0, 5.0
PCI Express configurations
1x16+1x4, 2x8+1x4
Supported instruction sets
AVX 2.0, SSE4.1, SSE4.2
Scalability
1S
L2 cache
32768 KB
Intel VT-x with Extended Page Tables (EPT)
Yes
Embedded options available
No
CPU configuration (max)
1
Graphics output
eDP 1.4b, DP 1.4a, HDMI 2.1
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel 64
Yes
Status
Launched
Market segment
Desktop
Launch date
Q1'24
Intel Virtualization Technology (VT-x)
Yes
Processor cache type
Smart Cache
OpenCL version
3.0
Features
On-board graphics card ID
0xA780
Maximum number of PCI Express lanes
20
Processor package size
45 x 37.5 mm
Processor ARK ID
237504
Thermal Monitoring Technologies
Yes
Idle States
Yes
Execute Disable Bit
Yes
PCI Express slots version
4.0, 5.0
PCI Express configurations
1x16+1x4, 2x8+1x4
Supported instruction sets
AVX 2.0, SSE4.1, SSE4.2
Scalability
1S
Embedded options available
No
CPU configuration (max)
1
Market segment
Desktop
Harmonized System (HS) code
8542310001
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
740.17B1
Use conditions
PC/Client/Tablet
Direct Media Interface (DMI) Revision
4.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel 64
Yes
Intel Turbo Boost Max Technology 3.0
Yes
Intel® Speed Shift Technology
Yes
Intel® OS Guard
Yes
Intel® Active Management Technology (Intel® AMT)
Yes
Intel® Secure Key
Yes
Intel® Turbo Boost Technology
2.0
Intel Trusted Execution Technology
Yes
Intel® Quick Sync Video Technology
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Enhanced Intel SpeedStep Technology
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel® Boot Guard
Yes
Intel® Thermal Velocity Boost
Yes
Intel® Volume Management Device (VMD)
Yes
Intel® Deep Learning Boost (Intel® DL Boost)
Yes
Mode-based Execute Control (MBE)
Yes
Intel® Turbo Boost Max Technology 3.0 frequency
5.9 GHz
Intel® Thermal Velocity Boost Frequency
6.2 GHz
Intel® Control-flow Enforcement Technology (CET)
Yes
Intel® Thread Director
Yes
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0
Yes
Intel® Total Memory Encryption - Multi Key
Yes
Intel® Threat Detection Technology (TDT)
Yes
Intel® Hardware Shield Eligibility
Yes
Intel vPro® Essentials Platform Eligibility
Yes
Intel vPro® Enterprise Platform Eligibility
Yes
Intel® Standard Manageability (ISM)
Yes
Intel® One-Click Recovery
Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp)
Yes
Intel® Remote Platform Erase (RPE)
Yes
Intel® Adaptive Boost Technology
Yes
Operational conditions
Tjunction
100 °C
Logistics data
Harmonized System (HS) code
8542310001
Weight & dimensions
Processor package size
45 x 37.5 mm
Other features
Maximum internal memory
192 GB
L2 cache
32768 KB
CPU configuration (max)
1
Graphics output
eDP 1.4b, DP 1.4a, HDMI 2.1

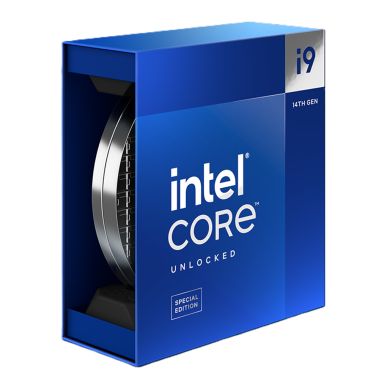

Intel Core i9-14900KS processor 36 MB Smart Cache Box
